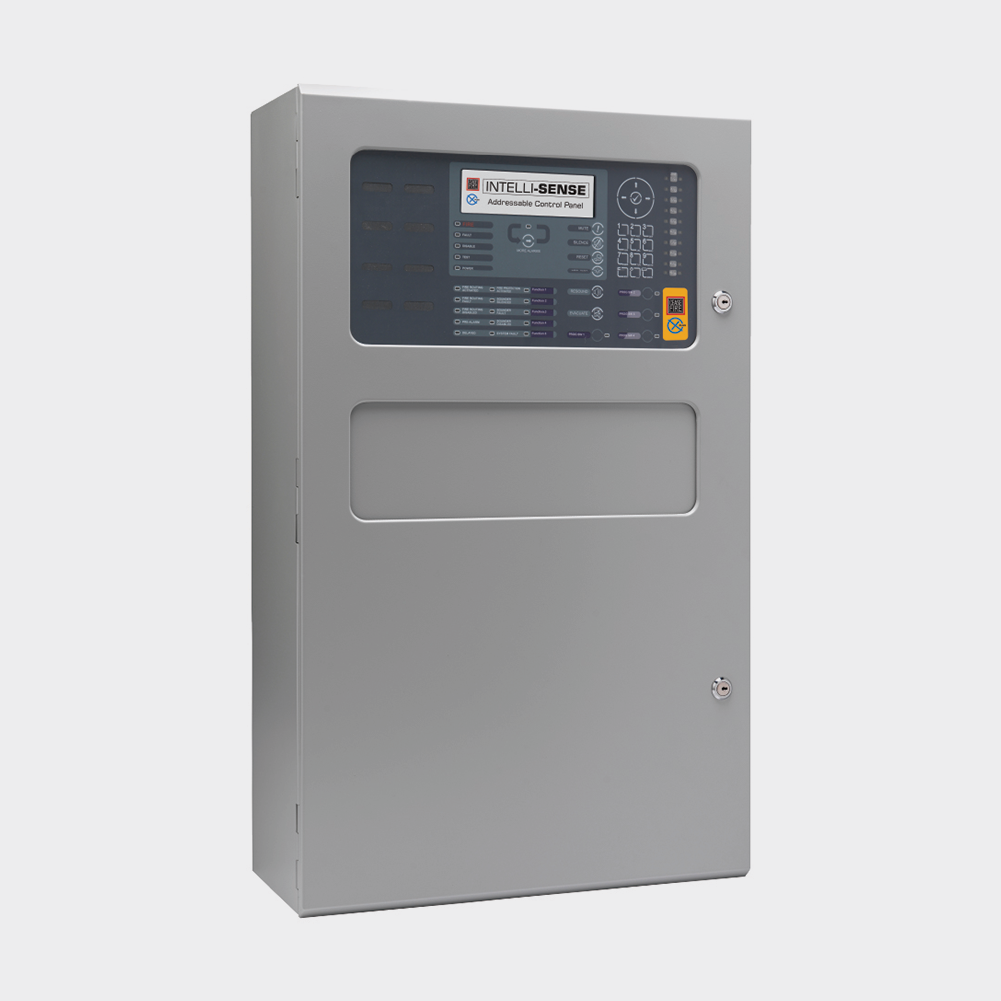

2-8-Loop-Panel-Fire-Alarm-Control Panel-Standard (TI-002320-FT)
- Fully expandable from2-8 loops via plug-in loop driver boards.
- 20 programmable Zonal / 25 System LEDs with slide-in labels.
- Dedicated loop driver to support fully digital communication protocol.
- Intelli-Sense graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware.
- Dual flash-based microprocessor technology with real-time clock onboard.
- Dedicated USB & RS232 serial port for direct
- PC or modem connection.
- Installer friendly Auto-learn, Loop Detection and Onboard Scope facility for ease of commissioning and fault finding.
- Fully programmable via the onboard alphanumeric keypad, or PC configuration tools.
- The graphical display can be configured to operate with virtually any language or character set and allow the installer's logo to be applied using the Logo application software.
- Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination.
- 2x5 Amp power supply and charger to En54 part 4.
- Integral Peripheral Bus for system expansion via available option cards.
- Intelli-Sense-NeT peer-to-peer network with up to 2000 zones.
- 1-year warranty
1 Type Addressable 2 Model TI-002320-ST 3 Base Technology Dual flash-based processors with real-time clock, trace diagnostics, programmable
languages and character sets4 Display White backlit 240 x 64 graphical LCD 5 LED Indicators 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber
and 7 bi-colour (Fault & System)6 Controls Alpha numeric keypad permitting Navigation, Reset, Mute, Silence, Resound, Evacuate,
and 4 x Programmable Push Buttons Actual 27 Protocol Fully digital communication protocol 8 Number of Fire Zones 2000 (200 per individual panel) 9 Number of Loops Dedicated 2-8 loop control panel 10 Devices per Loop 240 Addressable Detectors and Devices 11 Loop Current 500mA 12 On-Board Sounder Circuits 8x1 Amp programmable 13 On-Board Relays 4x1Amp 30vAC/DC programmable (10mA,5vmin)-expandable to 8 using
2x TI-002370 (2-Way Relay Card)14 Auxiliary Supply 2 x 24v500mA 15 Programmable Input 2 x monitored programmable input on-board 16 Programmable Key Switch Inputs 16 volt free digital inputs 17 Total Available Output Current 2 x 5A maximum available for loop current + sounder outputs + auxiliary supply 18 Mains Supply 200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4Amax 19 Battery Capacity 2 x 24V4Ah internal(min),2x24V,18Ah internal(max), or 1x24V45Ah internal(max)
and1x24V 45Ah external (max) using optional battery enclosure20 Charger Current 2 x 2A temperature compensated 21 Serial Port 2 x on-board RS232 connection for PC, modem, IP, or portable printer 22 USB Interface 2 x USB B type connection for PC communication 23 Programming On-board keypad or PC running Windows tools 24 Event Log 2 x 5000 event & diagnostic + 500 fire 25 Networking On-board Standard network card (TI-002325). 26 Printer (optional) On-board 27 Enclosure/Colour Steel IP30 /RAL7035 28 Cable Entry (20mm knockouts) 30 x top, 6 x rear, 3 x bottom plus 2 x double knockout rear 29 Approvals EN 54-2:1998, EN 54-4:1998 & EN54-13:2005 Brochure Price List Datasheets Manuals
