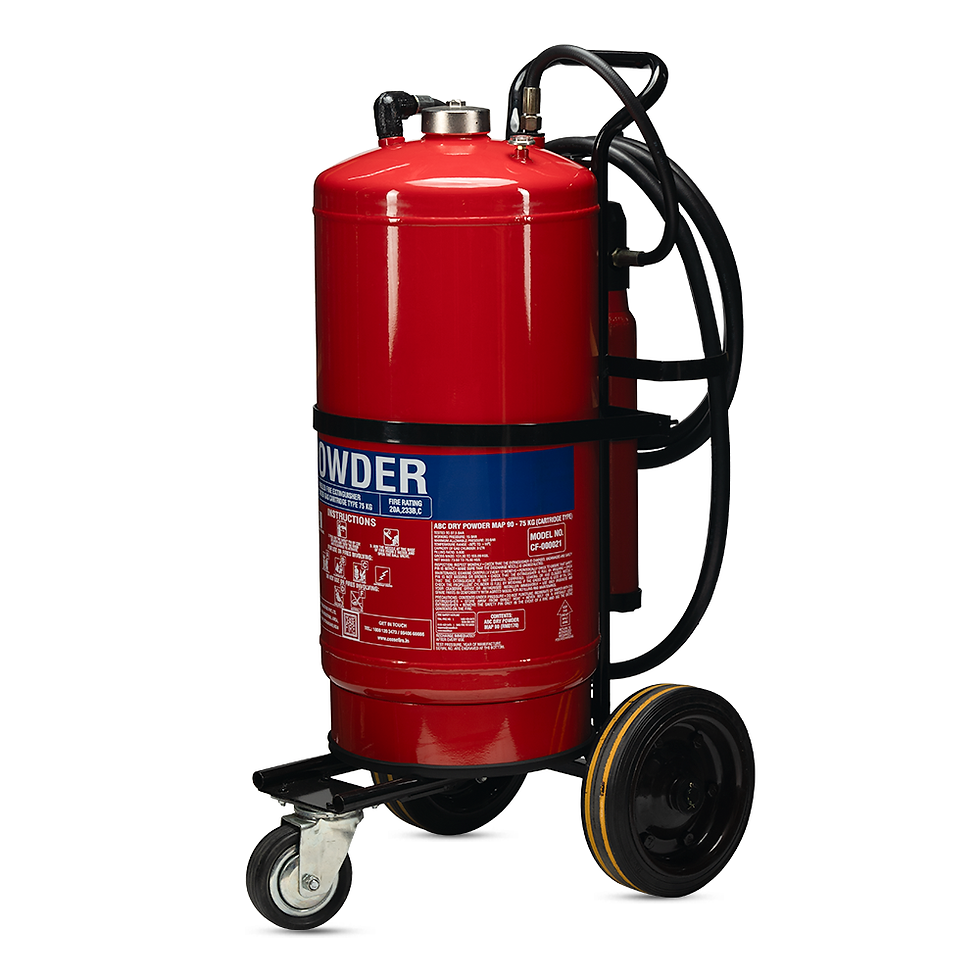

ABC POWDER CARTRIDGE TYPE WHEELED FIRE EXTINGUISHERS

Ceasefire’s ABC Powder Wheeled (Spot Pressure Type) Extinguishers are built for speed, power and reliability. A simple two-step activation mechanism allows you to fight the fire within seconds. MAP50 and MAP90 concentrations of Mono Ammonium Phosphate maximises the fire fighting power available to you. And stringent quality control and multiple point testing systems ensure that when you are faced with a fire, these extinguishers will deliver.

The cartridge type technology makes the extinguishers highly safe for all types of spaces as the pressure is created only at the time of fire fighting. Ceasefire’s ABC Powder Wheeled (Spot Pressure Type) Extinguishers come in 25 Kg, 50 Kg, and 75 Kg size variants.

FIRE RATINGS:

Size

25 Kg

50 Kg

75 Kg

MAP-50

20A, 233B

20A, 233B

20A, 233B

MAP-90

20A, 233B

20A, 233B

20A, 233B
Classification: Fights Class A, B C and Electrically started fires.

Easy-to-use with Quick Activation: Being a spot pressure extinguisher, the Cartridge can be instantly activated by firmly pressing the trigger.

Agent Potency: Packed with 50% and 90% MAP concentration.

Pressure gauge: Easy-to-read pressure gauge for ease of monitoring.

Easy Refilling: Unlike conventional extinguishers, these extinguishers can be refilled immediately anywhere, thus eliminating the downtime needed to take them to and fro from the factory.

6-year Warranty: 6-year Warranty means Ceasefire is looking out for the health of your fire safety products.

Certification: BIS, LPCB, and PED certified.

GLOSSARY	FIRE EXT MAP50 25KG MS CT RED	FIRE EXT MAP50 50KG MS CT RED	FIRE EXT MAP50 75KG MS CT RED
PRODUCT CODE	CF-001169	CF-001170	CF-001192
AGENT	MAP50	MAP50	MAP50
MINIMUM BULK RANGE THROW (AS PER IS 16018)	>6 METERS	>6 METERS	>6 METERS
CERTIFICATION OR VERIFING BODY	EUROCERT, BIS	EUROCERT, BIS	EUROCERT, BIS
CERTIFICATION TYPE	PED, IS 16018	PED, IS 16018	PED, IS 16018
BIS MARKING	YES	YES	YES
CE MARKING	YES	YES	YES
PROPELLANT (CARTRIDGE CAPACITY & WEIGHT)	1.5 LTR 600 GM CO2	3 LTR 1300 GM CO2	3 LTR 1300 GM CO2
GROSS WEIGHT	66.00 TO 70.00 KG	117.00 TO 120.00 KG	151.00 TO 155.00 KG
NET CONTENTS	24.50 TO 25.50 KG	49.00 TO 51.00 KG	73.50 TO 76.50 KG
APPROX. HEIGHT OF FIRE EXT.	990 MM	1200 MM	1200 MM
DISCHARGE MECHANISM	OPERATING LEVER (BALL VALVE)	OPERATING LEVER (BALL VALVE)	OPERATING LEVER (BALL VALVE)
APPLICABLE ON FIRES	CLASS A, B, C, & ELECTRICAL STARTED FIRE	CLASS A, B, C, & ELECTRICAL STARTED FIRE	CLASS A, B, C, & ELECTRICAL STARTED FIRE
IS 16018 RATINGS	20A, 233B	20A, 233B	20A, 233B
CAN CONSTRUCTION	DRAWN ROLLED AND MIG WELDED	DRAWN ROLLED AND MIG WELDED	DRAWN ROLLED AND MIG WELDED
VALVE / CAP CONSTRUCTION	FORGING AND MACHINING	FORGING AND MACHINING	FORGING AND MACHINING
EXTERNAL COATING	EPOXY POLYESTER POWDER COATING	EPOXY POLYESTER POWDER COATING	EPOXY POLYESTER POWDER COATING
WARRANTY IN YEARS	6	6	6
WORKING PRESSURE	15BAR	15BAR	15BAR
DIA. OF SHELL (OD)	300.0 MM	400.0 MM	400.0 MM
OPERATING TEMPERATURE	-30°C TO +55° C	-30°C TO +55° C	-30°C TO +55° C
HYDROSTATIC TEST PRESSURE	37.5 BAR	37.5 BAR	37.5BAR
CYLINDER MATERIAL SPEC.	STEEL CR2(DC01)	STEEL HR3(DD13)	STEEL HR3(DD13)
BODY THICKNESS	3.0 MM	3.5 MM	3.5 MM

GLOSSARY	FIRE EXT MAP90 25KG MS CT RED	FIRE EXT MAP90 50KG MS CT RED	FIRE EXT MAP90 75KG MS CT RED
PRODUCT CODE	CF-000019	CF-000020	CF-000021
AGENT	MAP90	MAP90	MAP90
MINIMUM BULK RANGE THROW (AS PER IS 16018)	>6 METERS	>6 METERS	>6 METERS
CERTIFICATION OR VERIFING BODY	EUROCERT, BIS	EUROCERT, BIS	EUROCERT, BIS
CERTIFICATION TYPE	PED, IS 16018	PED, IS 16018	PED, IS 16018
BIS MARKING	YES	YES	YES
CE MARKING	YES	YES	YES
PROPELLANT (CARTRIDGE CAPACITY & WEIGHT)	1.5 LTR 600 GM CO2	3 LTR 1300 GM CO2	3 LTR 1300 GM CO2
GROSS WEIGHT	66.00 TO 70.00 KG	117.00 TO 120.00 KG	151.00 TO 155.00 KG
NET CONTENTS	24.50 TO 25.50 KG	49.00 TO 51.00 KG	73.50 TO 76.50 KG
APPROX. HEIGHT OF FIRE EXT.	990 MM	1200 MM	1200 MM
DISCHARGE MECHANISM	OPERATING LEVER (BALL VALVE)	OPERATING LEVER (BALL VALVE)	OPERATING LEVER (BALL VALVE)
APPLICABLE ON FIRES	CLASS A, B, C, & ELECTRICAL STARTED FIRE	CLASS A, B, C, & ELECTRICAL STARTED FIRE	CLASS A, B, C, & ELECTRICAL STARTED FIRE
IS 16018 RATINGS	20A, 233B	20A, 233B	20A, 233B
CAN CONSTRUCTION	DRAWN ROLLED AND MIG WELDED	DRAWN ROLLED AND MIG WELDED	DRAWN ROLLED AND MIG WELDED
VALVE / CAP CONSTRUCTION	FORGING AND MACHINING	FORGING AND MACHINING	FORGING AND MACHINING
EXTERNAL COATING	EPOXY POLYESTER POWDER COATING	EPOXY POLYESTER POWDER COATING	EPOXY POLYESTER POWDER COATING
WARRANTY IN YEARS	6	6	6
WORKING PRESSURE	15BAR	15BAR	15BAR
DIA. OF SHELL (OD)	300.0 MM	400.0 MM	400.0 MM
OPERATING TEMPERATURE	-30°C TO +55° C	-30°C TO +55° C	-30°C TO +55° C
HYDROSTATIC TEST PRESSURE	37.5BAR	37.5BAR	37.5BAR
CYLINDER MATERIAL SPEC.	STEEL CR2(DC01)	STEEL HR3(DD13)	STEEL HR3(DD13)
BODY THICKNESS	3.0 MM	3.5 MM	3.5 MM
