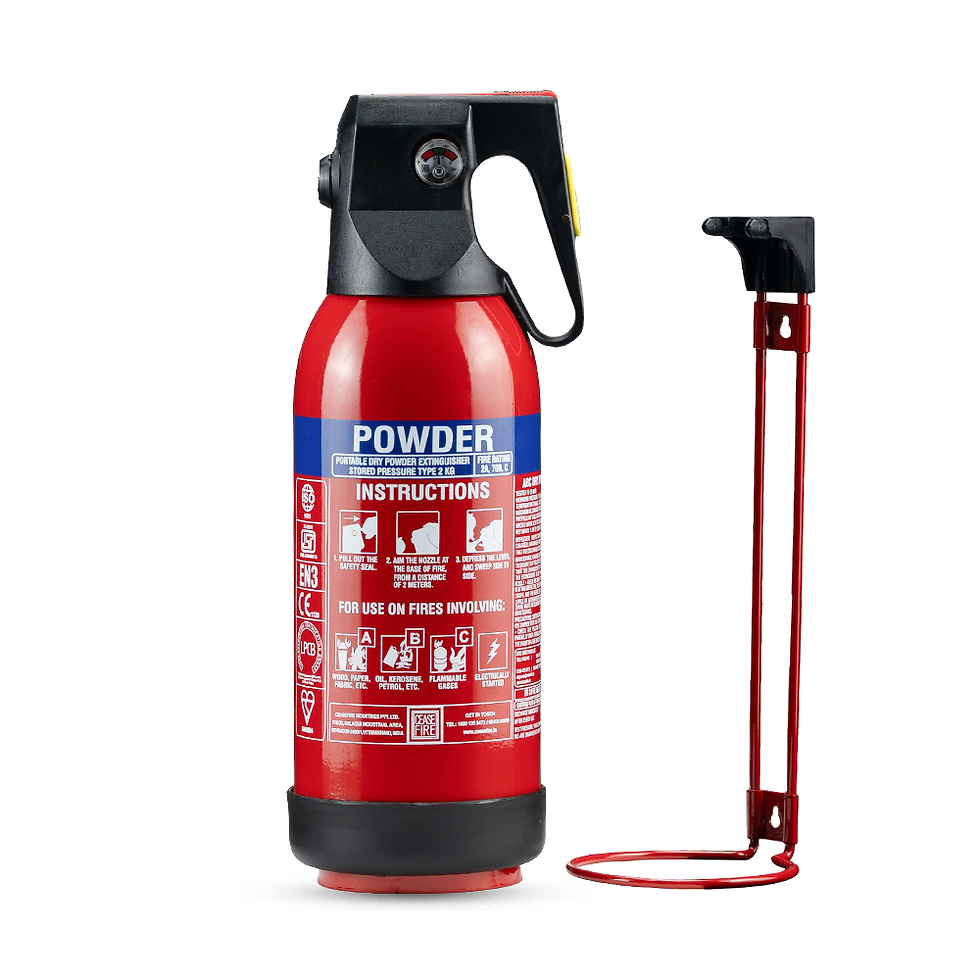

ABC Powder Portable (Map 90) Extinguishers
In environments such as schools, offices, hospitals & factories, the Ceasefire ABC Powder extinguisher is your safest bet. Mono Ammonium Phosphate paired with a simple, controllable discharge mechanism and stored pressure technology maximises the firefighting power and puts out the fire within seconds.
Ceasefire’s ABC extinguishers are effective against Class A, B, C and electrically started fires. They take the guesswork and confusion out of choosing an extinguisher and save valuable time in the face of the fatally dangerous enemy called fire.
Ceasefire’s ABC extinguishers are built for speed, power and reliability. A simple two-step activation mechanism allows you to fight the fire within seconds. MAP 90 maximises the fire fighting power available to you. And stringent quality control and multiple point testing systems ensure that when you are faced with a fire, these extinguishers will deliver.Ceasefire’s ABC Powder portable range of extinguishers come in 1 kg, 2 Kg, 4 Kg, 6 Kg and 9 Kg size variants in Mild steel container bodies.
FIRE RATINGS:
MAP-90 1 Kg 2 Kg 4 Kg 6 Kg 9 Kg IS 15683 1A, 34B 3A, 70B 4A, 144B 6A, 183B 6A, 233B EN 3 5A, 21B 13A, 55B 21A, 144B 27A, 183B 43A, 233B -
Classification: Fights Class A, B, C and electrically started fires.
-
Agent Potency: Packed with 90% MAP concentration.
-
Pressure gauge: Easy-to-read pressure gauge for ease of monitoring
-
Special safety valves: Equipped with Schraeder Valve and Pressure Relief Valve1
-
10-Years Warranty: 10-Years Warranty means Ceasefire is looking out for the health of your fire safety products.
-
Certification: BIS, LPCB, BSI Kitemark, and PED certified.
What’s New
01. Enhanced Valve System
- PRV + NRV for safer, simpler servicing.
The enhanced valve system provides added pressure safety and enables efficient maintenance without fully depressurising the extinguisher.
02. Screen-Printed Cylinder Label
- Built to last.
Product information is screen-printed directly onto the cylinder for excellent resistance to weather conditions, tampering, scratching, rubbing, chemicals and fading- keeping critical information long lasting.
03. Glow-in-the-Dark Signage
- Find it when visibility is low.
A phosphorescent locator sign at the base helps identify the extinguisher in darkness, low visibility and smoke, enabling faster access during emergencies. Conforms to DIN standards and exceeds DIN 67510 Part 4 requirements.
04. Eco-Friendly Packaging
- Less packaging waste. More responsibility.
Recyclable paper, corrugated board and natural rubber replace conventional packaging materials, helping reduce carbon footprints and making recycling easier.
05. Easy-Lug Mount Bracket
- Quick to mount. Easy to access.
The secure “J” hanger makes installation and removal quick and convenient while keeping the extinguisher firmly in place and readily accessible.
-
GLOSSARY Fire Ext MAP90 1Kg MS SP Red (Gun Housing) Fire Ext MAP90 2Kg MS SP Red (Gun Housing) Fire Ext MAP90 4Kg MS SP Red Fire Ext MAP90 6Kg MS SP Red Fire Ext MAP90 9Kg MS SP Red Product Code CF-001142 CF-001143 CF-001144 CF-001145 CF-001146 Capacity of Agent 1 (Kg) 2 (Kg) 4 (Kg) 6 (Kg) 9 (Kg) Filling tolerance by Mass ± 2 (%) ± 2 (%) ± 2 (%) ± 2 (%) ± 2 (%) Agent ABC Powder MAP 90 ABC Powder MAP 90 ABC Powder MAP 90 ABC Powder MAP 90 ABC Powder MAP 90 Certification Standard ISO 9001, IS-15683, PED, *EN3 ISO 9001, IS-15683, PED, *EN3 ISO 9001, IS-15683, PED, *EN3 ISO 9001, IS-15683, PED, *EN3 ISO 9001, IS-15683, PED, *EN3 Valve Material of Construction (MOC) Brass Brass Brass Brass Brass Valve Construction Forging and machining Forging and machining Forging and machining Forging and machining Forging and machining Pressure Relief Valve (PRV) No No Yes Yes Yes Non Return Valve (NRV) No No Yes Yes Yes Shell Material of Construction (MOC) Steel CR2 (Dc01) Steel CR2 (DC01) Steel CR2 (DC01) Steel CR2 (DC01) Steel CR2 (DC01) Shell Construction Deep Drawn & MIG Welded Deep Drawn & MIG Welded Deep Drawn & MIG Welded Deep Drawn & MIG Welded Deep Drawn & MIG Welded Min. Wall Thickness 1
(mm)1.4
(mm)1.2
(mm)1.4
(mm)1.4
(mm)Diameter of Shell (approx.) 86.5
(mm)108
(mm)140
(mm)160
(mm)175
(mm)Total Height (approx.) 327
(mm)368
(mm)445
(mm)490
(mm)620
(mm)Test Pressure 35 (Bar) 35 (Bar) 35 (Bar) 35 (Bar) 35 (Bar) Anti-Corrosive Treatment External Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Service Pressure 15 (Bar) 15 (Bar) 15 (Bar) 15 (Bar) 15 (Bar) Type of Operating Mechanism Thumb Triggered Thumb Triggered Squeeze Grip Squeeze Grip Squeeze Grip Type of Pressure Gauge Magnetic Bourdon Tube Type Magnetic Bourdon Tube Type Magnetic Bourdon Tube Type Magnetic Bourdon Tube Type Magnetic Bourdon Tube Type MOC and Length of Hose Direct Nozzle
(mm)Direct Nozzle
(mm)EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 400 mm
(mm)EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 400 mm
(mm)EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 650 mm
(mm)Minimum Throw Distance (BRD as per IS-15683) > 2
(Meter)> 2
(Meter)> 2
(Meter)> 2
(Meter)> 2
(Meter)Min. Discharge Time (as per IS-15683) 8 (Sec.) 9 (Sec.) 15 (Sec.) 15 (Sec.) 15 (Sec.) Applicable to Type of Fire Class A, B, C & Electrical Started Fire Class A, B, C & Electrical Started Fire Class A, B, C & Electrical Started Fire Class A, B, C & Electrical Started Fire Class A, B, C & Electrical Started Fire Fire Rating - IS 15683 Ratings 1A | 34B 3A | 70B 4A | 144B 6A | 183B 6A | 233B Fire Rating - EN-3 Rating 5A | 21B 13A | 55B 21A | 144B 27A | 183B 43A | 233B Operating Temperature Range From -30 to +60
(°C)From -30 to +60
(°C)From -30 to +60
(°C)From -30 to +60
(°C)From -30 to +60
(°C)Extinguisher Label Screen printed Screen printed Screen printed Screen printed Screen printed Glow in the Dark Fire Extinguisher Locator No No Yes Yes Yes Green Packaging (Environment Friendly) Yes Yes Yes Yes Yes Gross Weight** 1.85 to 2.10 (Kg) 3.30 to 3.50 (Kg) 6.20 to 6.50 (Kg) 9.0 to 9.35 (Kg) 13.20 to 13.60 (Kg) Product Warranty*** 10
(Year)10
(Year)10
(Year)10
(Year)10
(Year)Mounting Bracket Wire Bracket Wire Bracket L Bracket with J hanger L Bracket with J hanger L Bracket with J hanger *Technical approval to EN 3 except EN 3-7 clause 16.2 LPCB ref 1329h.
**It includes Empty Extinguisher, Contents, Plastic Base, Hose / Horn and bracket.
***The warranty is subject to the terms and conditions mentioned on the warranty card.
