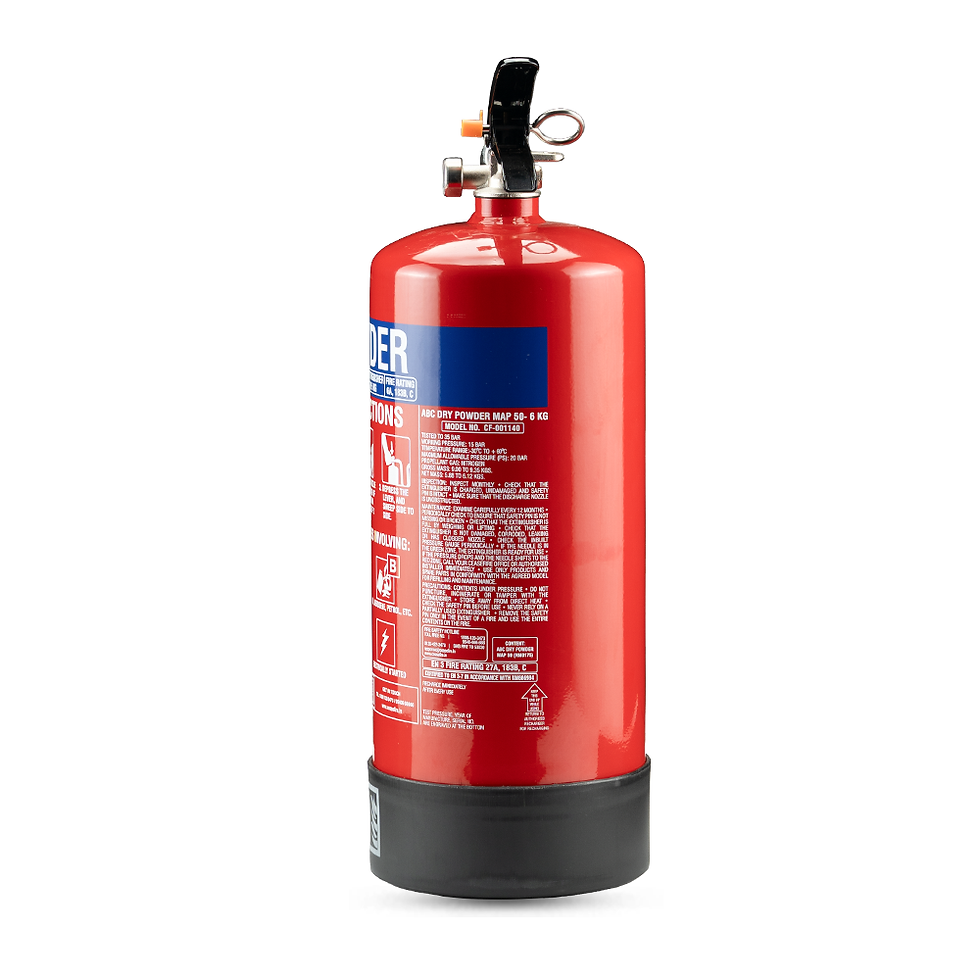

ABC Portable Powder Fire Extinguishers (Map 50)
In environments such as schools, offices, hospitals, and factories, the Ceasefire ABC powder extinguisher is your best choice. Monoammonium phosphate, combined with a simple, controllable discharge mechanism and pressure storage technology, maximizes extinguishing power and extinguishes the fire in seconds.
Ceasefire ABC extinguishers are effective against Class A, B, C, and electrical fires. They eliminate the guesswork and confusion when choosing an extinguisher and save valuable time against the dangerous enemy of fire.Ceasefire ABC extinguishers are designed for speed, power, and reliability. A simple two-step activation mechanism allows you to fight the fire in seconds.
The MAP 50 maximizes the available extinguishing power. Rigorous quality control and multi-point testing systems ensure that, in the event of a fire, these extinguishers will respond perfectly.
Ceasefire's range of portable ABC powder extinguishers is available in 2 kg, 4 kg, 6 kg, and 9 kg sizes, with mild steel and stainless steel bodies.
FIRE RATING:
MAP- 50
2 Kg
4 Kg
6 Kg
9 Kg
IS 15683
2A, 70B
4A, 144B
6A, 183B
6A, 233B
EN 3
8A, 70B
21A, 144B
27A, 183B
43A, 233B
- Classification: Fights Class A, B, C, and electrical fires.
- Agent Strength: With a 50% MAP concentration.
- Pressure Gauge: Easy to read for easy monitoring.
- Special Safety Valves: Equipped with a Schraeder valve and pressure relief valve.
- 10-Year Warranty: With a 10-year warranty, Ceasefire takes care of the health of its fire safety products.
- Certification: BIS, LPCB, BSI Kitemark, and PED certification.
GLOSSARY FIRE EXT MAP50 2KG MS SP RED (SQUEEZE GRIP) FIRE EXT MAP50 2KG MS SP RED (GUN HOUSING) FIRE EXT MAP50 4KG MS SP RED FIRE EXT MAP50 6KG MS SP RED FIRE EXT MAP50 9KG MS SP RED PRODUCT CODES CF-001138SG CF-001138 CF-001139 CF-001140 CF-001141 AGENT ABC POWDER MAP 50 ABC POWDER MAP 50 ABC POWDER MAP 50 ABC POWDER MAP 50 ABC POWDER MAP 50 STORED PRESSURE/CARTRIDGE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE CERTIFICATION OR VERIFING BODY EUROCERT, BIS, LPCB, BSI EUROCERT, BIS, LPCB ,BSI EUROCERT, BIS, LPCB, BSI EUROCERT, BIS, LPCB, BSI EUROCERT, BIS, LPCB, BSI CERTIFICATION TYPE PED, IS 15683 , EN3 PED, IS 15683 , EN3 PED, IS 15683 , EN3 PED, IS 15683 , EN3 PED, IS 15683 , EN3 DUAL CERTIFICATE YES YES YES YES YES BIS MARKING YES YES YES YES YES *LPCB MARKING YES YES YES YES YES KITEMARK MARKING YES YES YES YES YES CE MARKING YES YES YES YES YES MINIMUM BULK RANGE THROW (AS PER IS 15683) > 2 METERS > 2 METERS > 2 METERS > 2 METERS > 2 METERS GROSS WEIGHT 3.30 TO 3.50 KG 3.30 TO 3.50 KG 6.20 TO 6.50 KG 9.0 TO 9.35 KG 13.20 TO 13.60 KG NET MASS 1.94 TO 2.06 KG 1.94 TO 2.06 KG 3.92 TO 4.08 KG 5.88 TO 6.12 KG 8.82 TO 9.18 KG DISCHARGE MECHANISM SQUEEZE GRIP THUMB TRIGGERED SQUEEZE GRIP SQUEEZE GRIP SQUEEZE GRIP APPLICABLE ON FIRES A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE IS 15683 RATINGS 2A, 70B 2A, 70B 4A, 144B 6A, 183B 6A, 233B EN 3 RATINGS 8A, 70B 8A, 70B 21A, 144B 27A, 183B 43A, 233B CAN CONSTRUCTION DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED VALVE / CAP CONSTRUCTION FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING EXTERNAL COATING EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER HELIUM LEAK DETECTION TESTING YES YES YES YES YES WARRANTY IN YEARS 10 10 10 10 10 WORKING PRESSURE 15 BAR 15 BAR 15 BAR 15 BAR 15 BAR HYDROSTATIC TEST PRESSURE 35 BAR 35 BAR 35 BAR 35 BAR 35 BAR APPROX DIA. OF SHELL (OD) 108 MM 108 MM 140 MM 160 MM 175 MM APPROX. HEIGHT OF FIRE EXT. 368 MM 423 MM 445 MM 490 MM 620 MM BODY THICKNESS 1.4 MM 1.4 MM 1.2MM 1.4 MM 1.4 MM CYLINDER MATERIAL SPEC. STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) OPERATING TEMPERATURE -30°C TO +60°C -30°C TO +60°C -30°C TO +60°C -30°C TO +60°C -30°C TO +60°C *Technical approval to EN 3 except EN 3-7 clause 16.1 LPCB ref 1329h
GLOSSARY FIRE EXT MAP50 2KG SS SP RED FIRE EXT MAP50 4KG SS SP RED FIRE EXT MAP50 6KG SS SP RED FIRE EXT MAP50 9KG SS SP RED PRODUCT CODES CF-001544 CF-001545 CF-001546 CF-001547 AGENT ABC POWDER MAP 50 ABC POWDER MAP 50 ABC POWDER MAP 50 ABC POWDER MAP 50 STORED PRESSURE/CARTRIDGE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE CERTIFICATION OR VERIFING BODY EUROCERT, BIS EUROCERT, BIS EUROCERT, BIS EUROCERT, BIS CERTIFICATION TYPE PED, IS 15683 PED, IS 15683 PED, IS 15683 PED, IS 15683 BIS MARKING YES YES YES YES CE MARKING YES YES YES YES MINIMUM BULK RANGE THROW (AS PER IS 15683) > 2 METERS > 2 METERS > 2 METERS > 2 METERS GROSS WEIGHT (APPROX) 4.4 TO 4.7 KG 6.80 TO 7.00 KG 10.30 TO 10.90 KG 14.40 TO 14.80 KG APPROX NET MASS 1.96 TO 2.04 KG 3.92 TO 4.08 KG 5.88 TO 6.12 KG 8.82 TO 9.18 KG DISCHARGE MECHANISM SQUEEZE GRIP SQUEEZE GRIP SQUEEZE GRIP SQUEEZE GRIP APPLICABLE ON FIRES A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE IS 15683 RATINGS 2A, 70B 4A, 144B 6A, 183B 6A, 233B EN 3 RATINGS NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE NOT APPLICABLE CAN CONSTRUCTION DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED VALVE / CAP CONSTRUCTION FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING EXTERNAL COATING EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER HELIUM LEAK DETECTION TESTING YES YES YES YES WARRANTY IN YEARS 10 10 10 10 WORKING PRESSURE 15 BAR 15 BAR 15 BAR 15 BAR HYDROSTATIC TEST PRESSURE 35 BAR 35 BAR 35 BAR 35 BAR APPROX DIA. OF SHELL (OD) 108 MM 140 MM 160 MM 175 MM APPROX. HEIGHT OF FIRE EXT. 423 MM 445 MM 490 MM 620 MM BODY THICKNESS (APPROX) 1.5 MM 1.5 MM 1.5 MM 1.5 MM CYLINDER MATERIAL SPEC. SS 304 (1.4301) SS 304 (1.4301) SS 304 (1.4301) SS 304 (1.4301) OPERATING TEMPERATURE -30°C TO +60°C -30°C TO +60°C -30°C TO +60°C -30°C TO +60°C
