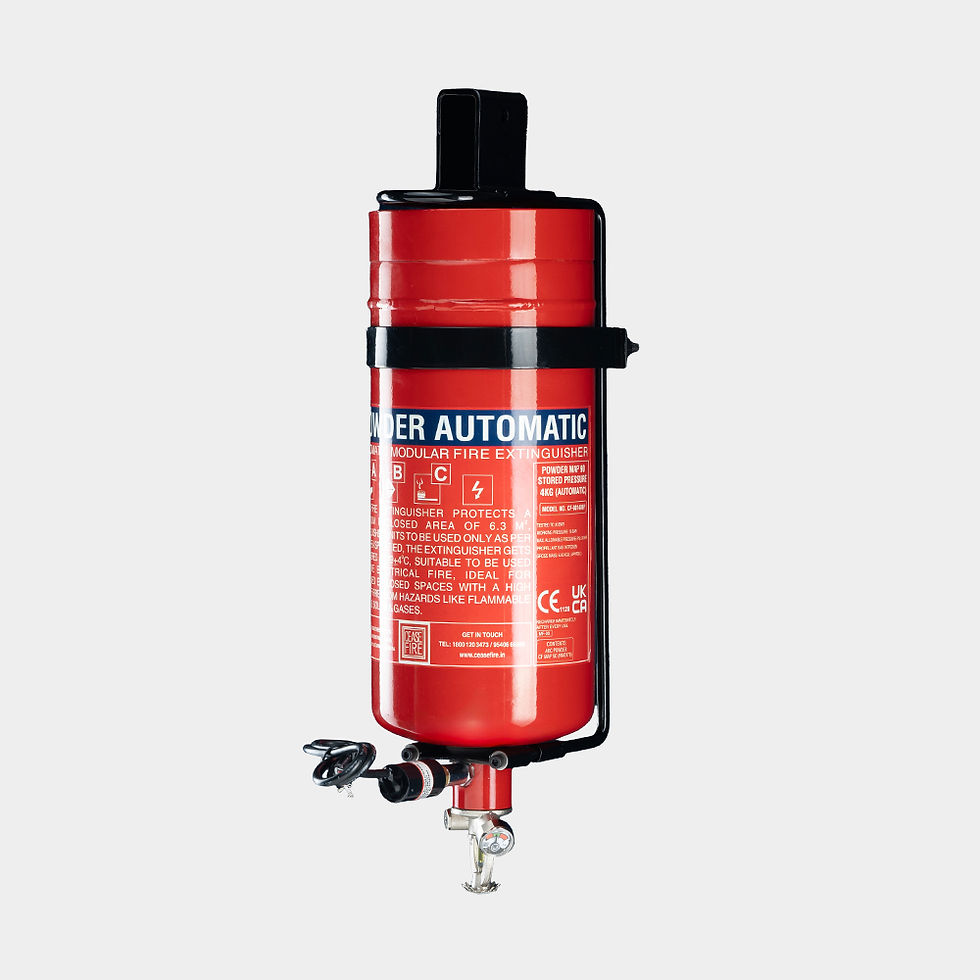

Wall Mounted Automatic (M Series) ABC Powder Extinguishers
The Ceasefire Wall Mounted M Series Automatic ABC Powder extinguishers is a breakthrough range that is designed for three-fold fire protection of a premises that is Intuitive (Self Activated), Responsive (Monitorable) and Scalable (Expandable).
The Ceasefire Wall Mounted Automatic M Series Extinguishers are Thermally-Actuated extinguishers and are designed to give 24x7 automatic fire protection to any space where human presence is low or absent and manual fire detection and fire fighting is a challenge.
The modular nature of these extinguishers make them retrofittable and can instantly be mounted in a variety of spaces, making the premises self-reliant on fire safety, without having to undertake any structural changes in the space.
The biggest strength of the Ceasefire Wall Mounted Automatic M Series Extinguisher however is their ability to become monitorable and scalable. By opting for a Pressure Switch these extinguishers can be integrated to third-party devices to become monitorable. On the other hand these extinguishers can also be used as building blocks to form a scalable and integrated total flooding solution by opting for Metron Actuators and connecting the units with fire detection devices and a control panel.
a) Making the M Series Automatic Extinguishers Monitorable :
With the presence of a pressure port in these extinguisher units, these can be made monitorable by opting for a Pressure Switch and can be integrated to any third-party device such as a Fire Alarm Panel, a stand-alone Siren Strobe or a Building Management System for monitoring purpose. This enables users to not only get an alert on activation of these units in case of fire but also do preventive-maintenance monitoring of the units.
b) Powerful Agent:
The Wall Mounted Automatic M Series Fire Extinguishers are available in ABC Powder (MAP50) to offer potent fire fighting solution for a wide variety of premises.
c) Size:
Sizes available in 1kg, 2 kg, 4kg, 6kg & 9kg.
d) Scaling up to create an M Series Total Flooding Solution:
The Ceasefire M Series Wall Mounted extinguishers can be used as building blocks to form an integrated total flooding solution.
This is done by opting for Metron Actuators that need to be installed at the Nozzle heads of the M Series extinguishers which can be further connected with a network of detectors via a control panel to form a formidable total flooding solution.
The detection module of the system can be configured using a wide variety of detectors such as smoke detectors, beam detectors, heat detectors, or others depending upon the fire risk faced by the premises.
The system acts on the principle of cross-zoning. Only when two or more detectors from two
separate zones confirm the fire episode to the control panel, the panel sends an activation signal to the system. The activation signal is sent to the Metron Actuator in the form of an electrical impulse. On receiving this electrical impulse a metal pin is fired inside the actuator that breaks the glass vial placed at the discharge point of extinguishing units, triggering the discharge of the agent.
What makes such a system configuration truly versatile is that all extinguishing units are triggered simultaneously to achieve total flooding results.
Configuring a total flooding solution using Ceasefire M Series Extinguishers for any premises requires a design process to be followed as defined in the system’s manual.
- Easy To Install: Retrofittable system and can be installed with least amount of structural changes in a premises.
- Automatic Actuation: Detects fire through thermal sensor and activates automatically.
- Targeted Protection: Option flexible mounting bracket that enables optimal positioning of the extinguisher in the risk zone proving targeted protection.
- Electrical Actuation Option: The units can be activated electrically by opting for metron actuators and connecting them to a network of detectors via a control panel to be configured as a Total Flooding System.
- Certification: PED and UKCA-PED approved.
- Secure Mounting Bracket: Comes with a secure mounting bracket for direct installation on the wall.
- Monitorable Option: These automatic extinguishers can be upgraded to become monitorable by opting for a pressure switch and integrating it with third-party devices.
- Saves Space: Agent cylinders are wall mounted units that do not require any floor space.
GLOSSARY Automatic Fire Ext Wall Mounted MAP50 1kg MS SP Red Automatic Fire Ext Wall Mounted MAP50 2kg MS SP Red Automatic Fire Ext Wall Mounted MAP50 4kg MS SP Red Automatic Fire Ext Wall Mounted MAP50 6kg MS SP Red Automatic Fire Ext Wall Mounted MAP50 9kg MS SP Red Stored Pressure / Cartridge Stored Pressure Stored Pressure Stored Pressure Stored Pressure Stored Pressure Agent ABC Powder MAP 50 ABC Powder MAP 50 ABC Powder MAP 50 ABC Powder MAP 50 ABC Powder MAP 50 Product Code CF-001401 CF-001402 CF-001403 CF-001404 CF-001405 Certification Standards PED PED PED PED PED CE Marked Yes Yes Yes Yes Yes Gross Weight (approx.) 1.90 Kg 4.05 Kg 7.15 Kg 9.50 Kg 13.95 Kg Net Contents (approx.) 1 Kg 2 Kg 4 Kg 6 Kg 9 Kg Approx. Height Of Fire Ext. 370 mm 442 mm 493 mm 538 mm 668 mm Type of Operating Mechanism Automatic Thermal Quarzoid Bulb / Elect(metron) Automatic Thermal Quarzoid Bulb / Elect(metron) Automatic Thermal Quarzoid Bulb / Elect(metron) Automatic Thermal Quarzoid Bulb / Elect(metron) Automatic Thermal Quarzoid Bulb / Elect(metron) Min. Discharge Time 1 sec 1.2 sec 2.5 sec 3.5 sec 5 sec Coverage Radius 0.69 m 0.97 m 1.69 m 1.95 m 2.52 m Coverage Area 1.5 m2 3 m2 9 m2 12 m2 20 m2 Installation Height Range 0.8 m 1.4 m 2.5 m 3 m 3.5 m Actuation Temperature 68° C +- 40°C 68° C +- 40°C 68° C +- 40°C 68° C +- 40°C 68° C +- 40°C Type of Discharge Fitting Sprinkler With Quartzoid Bulbhead Sprinkler With Quartzoid Bulbhead Sprinkler With Quartzoid Bulbhead Sprinkler With Quartzoid Bulbhead Sprinkler With Quartzoid Bulbhead Warranty In Years 10 10 10 10 10 Working Pressure 15 Bar 15 Bar 15 Bar 15 Bar 15 Bar Dia. Of Shell (OD) 86 mm 108 mm 140 mm 160 mm 175 mm Operating Temperature -30° C to 60° C -30° C to 60° C -30° C to 60° C -30° C to 60° C -30° C to 60° C Hydrostatic Test Pressure 30 Bar 30 Bar 30 Bar 30 Bar 30 Bar Body Thickness 1.4 mm 1.4 mm 1.2 mm 1.4 mm 1.4 mm
