Cafs (Watermist Compressed Air Foam System - Low Pressure)
Water is fire’s oldest enemy. The best extinguishing agent known to man. It has a theoretical cooling ability of 2.6 MW per litre per second. But in a real fire situation, such tremendous cooling power can only be achieved with hundreds of litres of water. Because nearly 80% of the water escapes the fire zone without evaporating. Water’s immense firefighting power can be optimally utilised only by complete vaporisation in a fire environment.
To achieve this, water must be broken down into microscopic molecules that have a surface area coverage many times higher than water. These droplets (about 150 micrometres in size) must then be delivered to the fire with a kinetic force strong enough to overcome fire’s own convection currents. The result: a powerful, reliable and efficient extinguisher.
Ceasefire now brings together all these features and creates the Water mist based Compressed Air Foam System; the best firefighting weapon ever designed. Ceasefire's Water mist based Compressed Air Foam System features a high technology gun which breaks water up into miniscule droplets. These droplets are then delivered through micro nozzles with a high degree of dispersion onto the flames, allowing you to fight even very large fires successfully.
With Ceasefire's Water mist based Compressed Air Foam System, nearly 100% of the mist turns into steam and evaporates. This key process stops the fire from spreading and eliminates post fire collateral damage such as flooding.

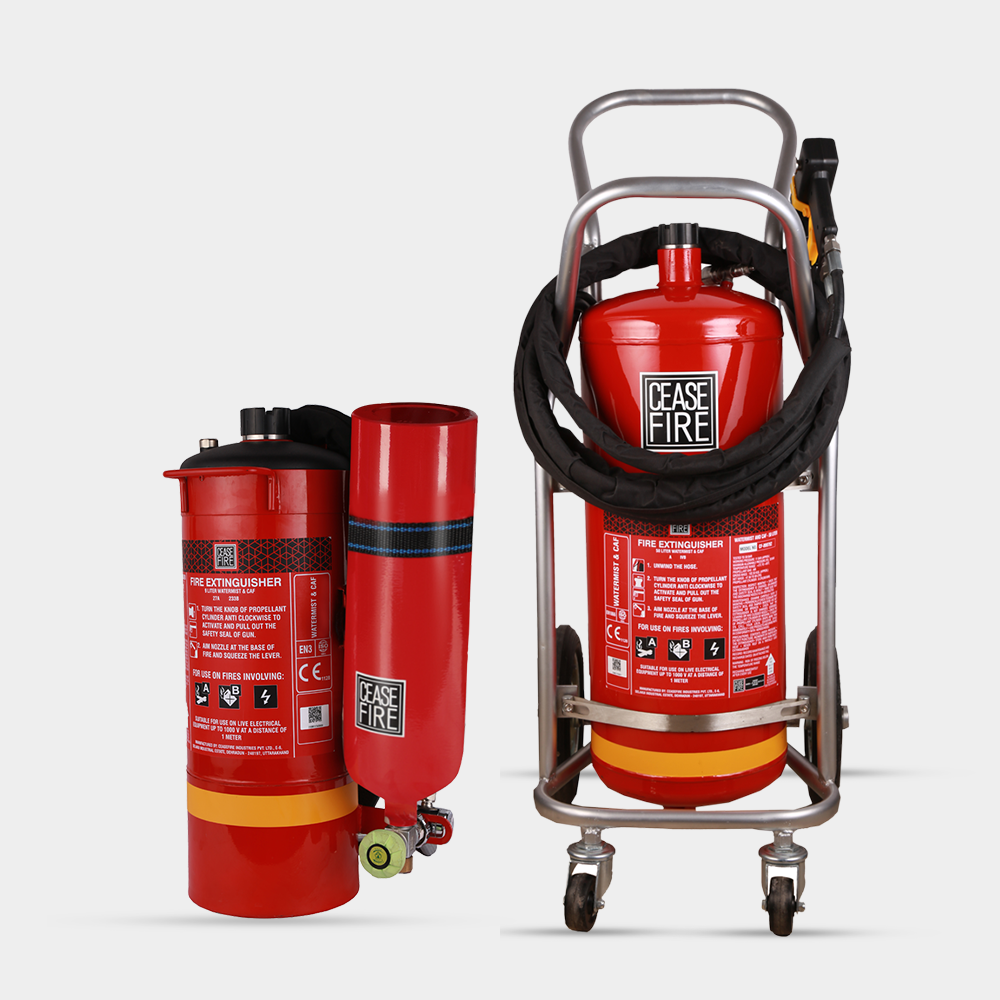

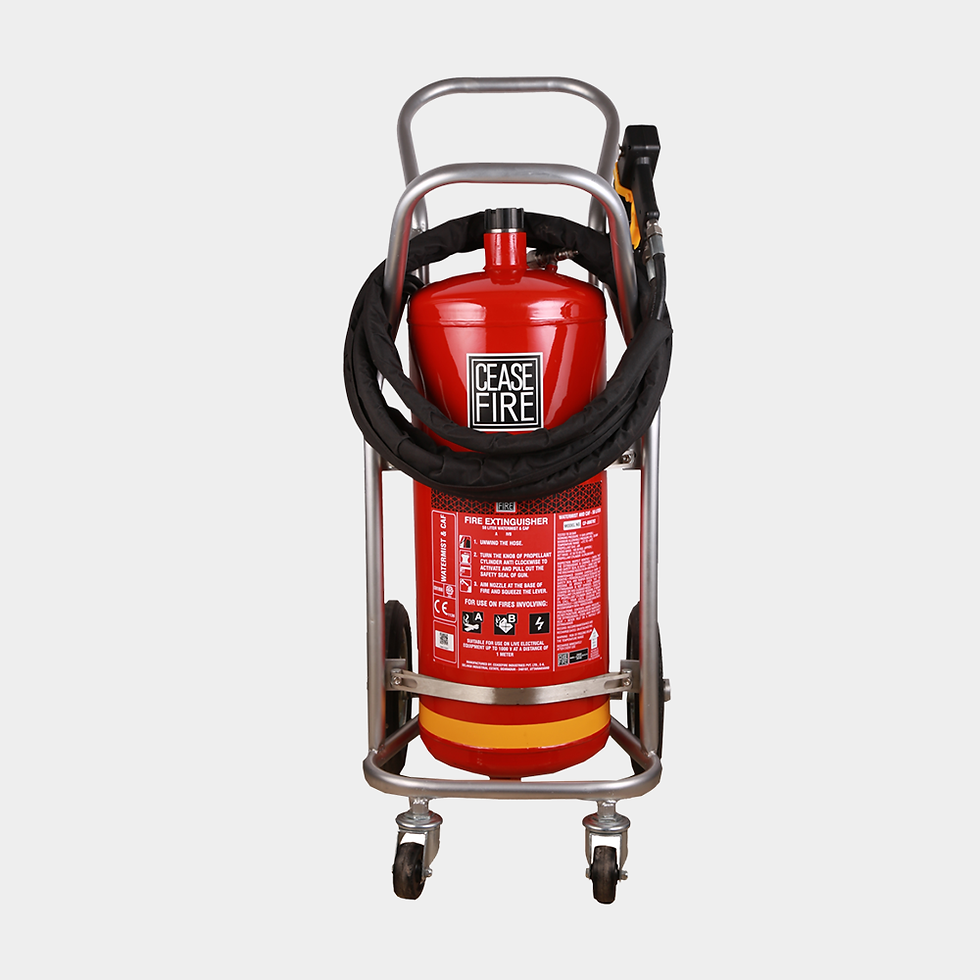

The mist also acts as the perfect barrier against thermal radiation, giving increased protection to the firefighter. Ceasefire's Water mist based Compressed Air Foam System is also safe to use on Class B fires like petrol and diesel, and electrically started fires - two areas where traditional water applications would either spread the fire, or cause an electrical shock.These systems are available in 10 Ltr. backpack and 50 Ltr. trolley-mounted variant, both in Stain Steel bodies.
FIRE RATINGS:
Size
EN -3
EN- 1866
9 Ltr
27A - 55A, 233B
-
50 Ltr
-
21A- 43A, IIB
-
Application: Works on Class A, B, and electrically started fires.
-
Works on large fire: The gun in Ceasefire's Watermist Compressed Air Foam System breaks water up into minuscule droplets which are delivered through specialised nozzles dousing fire effectively.
-
Increased protection: The mist also acts as the perfect barrier against thermal radiation.
-
Thermal shock-proof: Does not cause cracks to structural elements, steel casings and power line ceramics, due to the nonexistence of thermal shock damage.
-
Safe to use: No hazard to humans or damage to property due to low-pressure water mist of approx. 150 micron size, generated using plain water.
-
Maximum efficiency: The mist's miniscule droplets of water 50 microns cover a larger surface.
-
Controllable discharge: A simple squeeze grip activation mechanism allows you to control the discharge and optimise use of the extinguishing agent.
-
EPDM rubber hose pipe: Superior grade EPDM rubber is far more flexible than the normal rubber used in most hosepipes. It is also far less prone to cracks.
-
World-class quality: Comprehensive Helium Tests and Leak Tests also guarantee that the products you buy are manufactured according to the world's most stringent quality standards.
-
6 year Warranty: The 6 year Warranty means Ceasefire is looking out for the health of your fire safety products.
-
Certifications: BSI Kitemark, and PED certified.
-
GLOSSARY FIRE EXT CAFS LOW PRESSURE FOAM MIST 9L SS CT RED PRODUCT CODES CF-000781P AGENT AFFF FOAM 6% STORED PRESSURE/CARTRIDGE CARTRIDGE TYPE CERTIFICATION OR VERIFING BODY EUROCERT, ERDA, AFTRL CERTIFICATION TYPE PED,FIRE RATING CE MARKING/UK CA CE YES CARTRIDGE SIZE 2LTR ALLUMINIUM CYLINDER CYLINDER - 200BAR MINIMUM THROW DISTANCE 12 METERS GROSS WEIGHT (APPROX) 23.80 TO 26.20 KG NET MASS 8.55 TO 9.00 LTR DISCHARGE MECHANISM SQUEEZE GRIP APPLICABLE ON FIRES A, B & ELECTRICAL STARTED FIRE. EN 3 RATINGS 27A/55A, 233B CAN CONSTRUCTION DEEP DRAWN & MIG WELDED VALVE / CAP CONSTRUCTION MACHINING EXTERNAL COATING EPOXY POLYESTER POWDER WARRANTY IN YEARS 6 APPROX. GUN WEIGHT IN KG 1.64 KG WORKING PRESSURE 8 BAR HYDROSTATIC TEST PRESSURE 35 BAR DIA. OF SHELL (OD) 204 MM HEIGHT OF FIRE EXT. (APPROX) 575 MM BODY THICKNESS (APPROX) 1.5 MM CYLINDER MATERIAL SPEC. SS 316L (1.4435) OPERATING TEMPERATURE 5° C TO 60° C GLOSSARY FIRE EXT CAFS LOW PRESSURE FOAM MIST 50L SS CT RED PRODUCT CODE CF-000782P AGENT 6% OF KV FOAM 3% C-6 MINIMUM THROW DISTANCE 16 METERS CERTIFICATION OR VERIFING BODY ERDA,EUROCERT CERTIFICATION TYPE EN3-DIELECTRIC,EN1866 TEST, PED KITEMARK MARKING YES CE MARKING YES PROPELLANT CARTRIDGE CAPACITY 6 LTR MILD STEEL - 300 BAR GROSS WEIGHT (APPROX) 102.50 KG NET CONTENTS 47.50 TO 50.00 LTR APPROX. HEIGHT OF FIRE EXT. 1200 MM DISCHARGE MECHANISM SQUEEZE GRIP GUN APPLICABLE ON FIRES CLASS A, B & ELECTRICAL STARTED FIRE EN 1866 RATINGS 55A, IIB CAN CONSTRUCTION DRAWN ROLLED AND MIG WELDED VALVE / CAP CONSTRUCTION MACHINING EXTERNAL COATING EPOXY POLYESTER POWDER COATING WARRANTY IN YEARS 6 APPROX. GUN WEIGHT IN KG APPROX. 1.64 KG WORKING PRESSURE 8 TO 8.5 BAR DIA. OF SHELL (OD) 300.0 MM OPERATING TEMPERATURE 5° C TO +60°C HYDROSTATIC TEST PRESSURE 30BAR CYLINDER MATERIAL SPEC. SS 316L BODY THICKNESS 2.0 MM
