IN - PANEL TUBE BASED SUPPRESSION SYSTEM DIRECT LOW PRESSURE MAP 90

Introducing Ceasefire's Quick Response System, a revolutionary firefighting solution in Direct, Low Pressure which combines ground-breaking technology with functional simplicity to keep what's precious, safe.

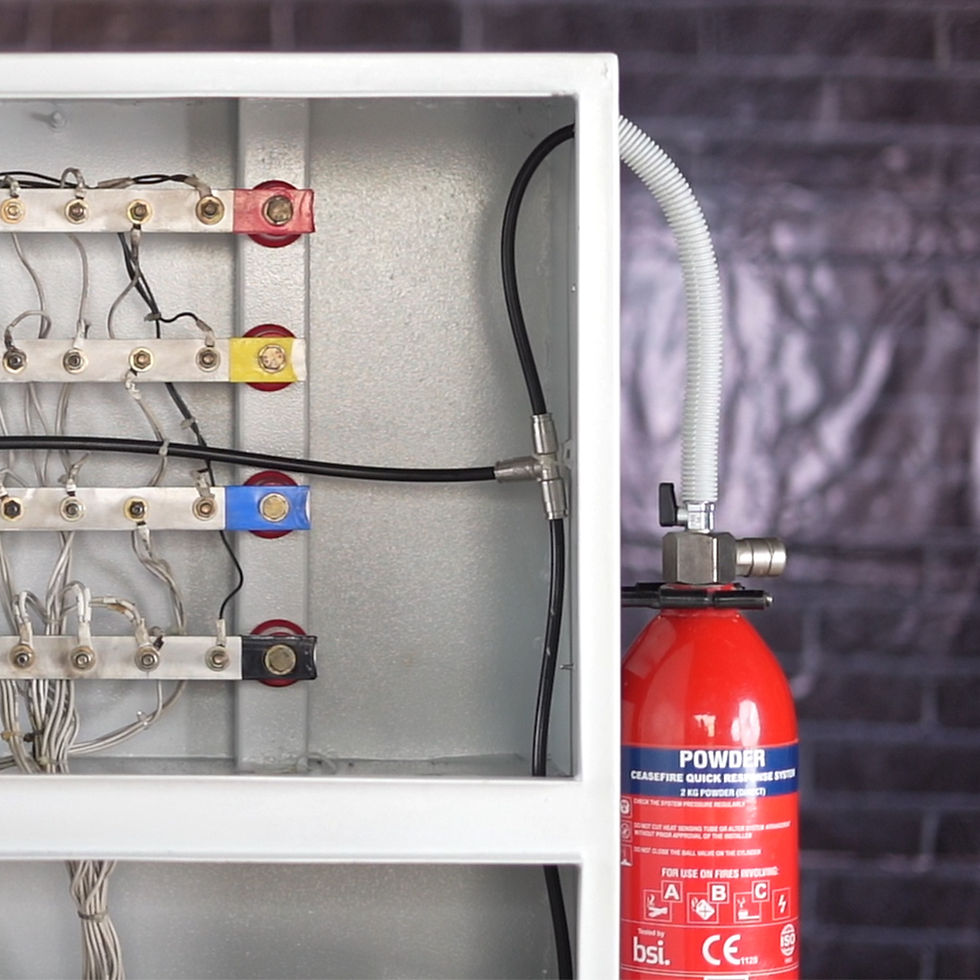

The most prominent feature of the Ceasefire Quick Response System is the specially designed UL listed, UV protected, Multi-layered, Modified Polyamide, heat-sensitive pneumatic polymer tubing  for superior fire detection and longevity.



It is connected at one end to a Ceasefire extinguishing agent container, while the rest of it runs unobtrusively throughout the area at risk.



When the flame comes in contact with the heat-sensitive tubing and reaches a temperature of 150 - 180°C, the distinctive rupture characteristics of the tube creates a miniature nozzle-like discharge port, directly aiming the discharge towards the heat/fire source.



The pneumatic mechanism triggers the valve of the extinguisher and sprays the extinguishing agent out of the tube directly onto the flame, dousing the fire instantaneously.



Because the extinguishing agent used is ABC Powder, this system is effective to combat  A, B, and C classes of fire.



The ABC Powder based system variant is ideally suited for those enclosed areas where risk of multiple classes of fire are present as the agent is effective against class A B C types of fires, making the system suitable for a wide variety of applications.



This is an ideal solution in case of fire in a single location, whether small or large, and can be designed to suit the specific needs of the premises.

Classification: Works on class A, B, C, and Electrically Started fires. Effective on a wide range of flammable and combustible materials.



Self- Actuated: Does not require any power supply and will function normally in the event of a power outage.





24-hour Protection: Automatic detection and actuation controls ensure fire protection is always ‘on’.



Flexible Design: Flexible tubing allows protection in areas that are difficult to access and may not be able to accommodate any other means of detection.



International Quality Standards: The Ceasefire Direct Low Pressure Quick Response System is manufactured to the highest global and national standards like BSI tested and CE certified for Forced and Natural Air Flow cabinet applications.



Rugged Design: Can withstand even harsh conditions where other types of detection systems might be rendered inadequate.
