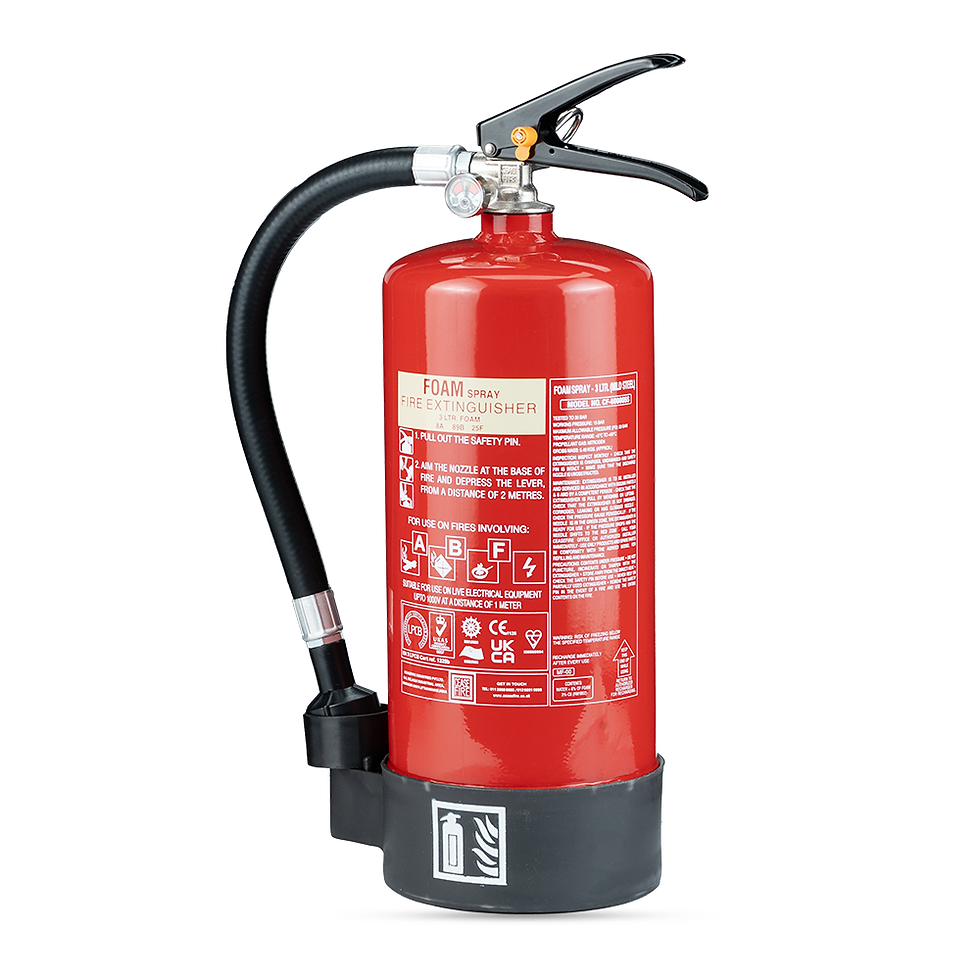

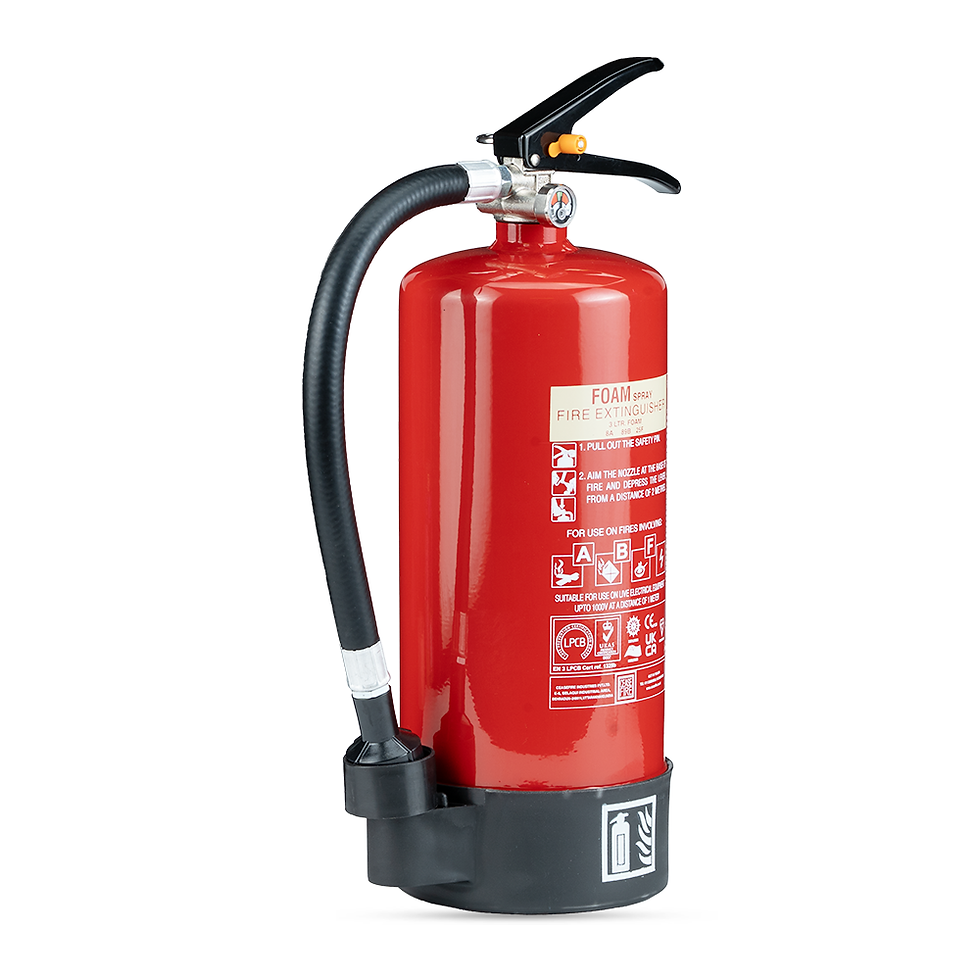

EN APPROVED FOAM PORTABLE EXTINGUISHERS (SPRAY MODEL)

The quickest way to kill a fire is by limiting the oxygen supply in the vicinity. Ceasefire’s Foam Spray model extinguishers forms a foam blanket, cutting down on the oxygen supply.



Ceasefire’s Foam Spray model extinguishers use specialised nozzels to create a fine spray of the extinguishant that makes it effective on Class A, F, and electrically started fires, making them more effective against the fire.



The range is available in 3 Ltrs., 6 Ltrs. and 9 Ltrs. capacities in both Stainless Steel and Mild Steel containers.



FIRE RATINGS:

Size	Ratings
3 Ltr	8A,
6 Ltr	13A,
9 Ltr	21A,

• Classification: Fights class A, B, F & Electrically Started Fires.
• Container Construction: Deep Drawn cylinder construction.
• Convenient handle: Squeeze Grip mechanism for quick and easy use.
• Special safety valves: Equipped with Schraeder Valve and Pressure Relief Valve.
• Safe to use on electrical fires: Suitable for use on live electrical equipment up to 1000 V from a distance of 1 meter.
• Certification: LPCB, BSI Kitemark, PED, MED, and UKCA-MED certified.



What’s New

01. Enhanced Valve System

PRV + NRV for safer, simpler servicing.
The enhanced valve system provides added pressure safety and enables efficient maintenance without fully depressurising the extinguisher.



02. Screen-Printed Cylinder Label

Built to last.
Product information is screen-printed directly onto the cylinder for excellent resistance to weather conditions, tampering, scratching, rubbing, chemicals and fading- keeping critical information long lasting.



03. Glow-in-the-Dark Signage

Find it when visibility is low.
A phosphorescent locator sign at the base helps identify the extinguisher in darkness, low visibility and smoke, enabling faster access during emergencies. Conforms to DIN standards and exceeds DIN 67510 Part 4 requirements.



04. Eco-Friendly Packaging

Less packaging waste. More responsibility.
Recyclable paper, corrugated board and natural rubber replace conventional packaging materials, helping reduce carbon footprints and making recycling easier.



05. Easy-Lug Mount Bracket

Quick to mount. Easy to access.
The secure “J” hanger makes installation and removal quick and convenient while keeping the extinguisher firmly in place and readily accessible.

GLOSSARY	FIRE EXT FOAM 3L SS SP RED (SPRAY MODEL)	FIRE EXT FOAM 3L MS SP RED (SPRAY MODEL)	FIRE EXT FOAM 6L SS SP RED (SPRAY MODEL)	FIRE EXT FOAM 6L MS SP RED (SPRAY MODEL)	FIRE EXT FOAM 9L SS SP RED (SPRAY MODEL)	FIRE EXT FOAM 9L MS SP RED (SPRAY MODEL)
PRODUCT CODE	CF-000779S	CF-000805S	CF-000715S	CF-000806S	CF-000716S	CF-000807S
AGENT	6% OF KV FOAM 3% C-6	6% OF KV FOAM 3% C-6	6% OF KV FOAM 3% C-6	6% OF KV FOAM 3% C-6	6% OF KV FOAM 3% C-6	6% OF KV FOAM 3% C-6
STORED PRESSURE / CARTRIDGE	STORED PRESSURE	STORED PRESSURE	STORED PRESSURE	STORED PRESSURE	STORED PRESSURE	STORED PRESSURE
CERTIFICATION OR VERIFING BODY	EUROCERT,LPCB,BSI,BRE GLOBAL	EUROCERT,LPCB,BSI,BRE GLOBAL	EUROCERT,LPCB,BSI,BRE GLOBAL	EUROCERT,LPCB,BSI,BRE GLOBAL	EUROCERT,LPCB,BSI,BRE GLOBAL	EUROCERT,LPCB,BSI,BRE GLOBAL
CERTIFICATION TYPE	PED,EN3 PENDING	PED,EN3 PENDING	PED,EN3 PENDING	PED,EN3 PENDING	PED,EN3 PENDING	PED,EN3 PENDING
CE MARKING	YES	YES	YES	YES	YES	YES
THROW	5 METERS	5 METERS	5 METERS	5 METERS	6 METERS	6 METERS
GROSS WEIGHT (APPROX)	5.70 KG	5.75 KG	9.40 TO 9.73 KG	9.40 TO 9.73 KG	13.05 TO 13.95 KG	14.70 TO 15.15 KG
NET MASS	2.85 TO 3.00 LTR	2.85 TO 3.00 LTR	5.70 TO 6.00 LTR	5.70 TO 6.00 LTR	8.55 TO 9.00 LTR	8.55 TO 9.00 LTR
DISCHARGE MECHANISM	SQUEEZE GRIP	SQUEEZE GRIP	SQUEEZE GRIP	SQUEEZE GRIP	SQUEEZE GRIP	SQUEEZE GRIP
APPLICABLE ON FIRES	A & B.	A & B.	A & B.	A & B.	A & B.	A & B.
EN 3 RATINGS	8A	8A	13A	13A	21A	21A
CAN CONSTRUCTION	DRAWN ROLLED & MIG WELDED	DEEP DRAWN & MIG WELDED	DRAWN ROLLED & MIG WELDED	DEEP DRAWN & MIG WELDED	DRAWN ROLLED & MIG WELDED	DEEP DRAWN & MIG WELDED
VALVE / CAP CONSTRUCTION	FORGING AND MACHINING	FORGING AND MACHINING	FORGING AND MACHINING	FORGING AND MACHINING	FORGING AND MACHINING	FORGING AND MACHINING
INTERNOT APPLICABLEL COATING	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER
EXTERNAL COATING	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER	EPOXY POLYESTER POWDER
HELIUM LEAK DETECTION TESTING	YES	YES	YES	YES	YES	YES
WARRANTY IN YEAR	5	5	5	5	5	5
G.A. DRAWING NUMBER	CF/SP-F3-SS/GA/01	CF/SP-F3/GA/02	CF/SP-F6LB-SS/GA/01	CF/SP-F6LB/GA/01	CF/SP-F9LB-SS/GA/01	CF/SP-F9LB/GA/02
WORKING PRESSURE	15 BAR	15 BAR	15 BAR	15 BAR	15 BAR	15 BAR
HYDROSTATIC TEST PRESSURE	35 BAR	35 BAR	35 BAR	35 BAR	35 BAR	35 BAR
DIA. OF SHELL (OD)	140 MM	140 MM	160 MM	160 MM	175 MM	175 MM
APPROX. HEIGHT OF FIRE EXT.	435 MM	440 MM	520 MM	520 MM	610 MM	615 MM
BODY THICKNESS	1.5 MM	1.6 MM	1.5 MM	1.6 MM	1.5 MM	2.0 MM
CYLINDER MATERIAL SPEC.	SS 304 (1.4301)	STEEL CR2(DC01)	SS 304 (1.4301)	STEEL CR2(DC01)	SS 304 (1.4301)	STEEL CR2(DC01)
OPERATING TEMPERATURE	5 O C TO 60O C	5 O C TO 60O C	5 O C TO 60O C	5 O C TO 60O C	5 O C TO 60O C	5 O C TO 60O C
SCHRAEDER VALVE	YES	YES	YES	YES	YES	YES
PRESSURE RELIEF VALVE	YES	YES	YES	YES	YES	YES
