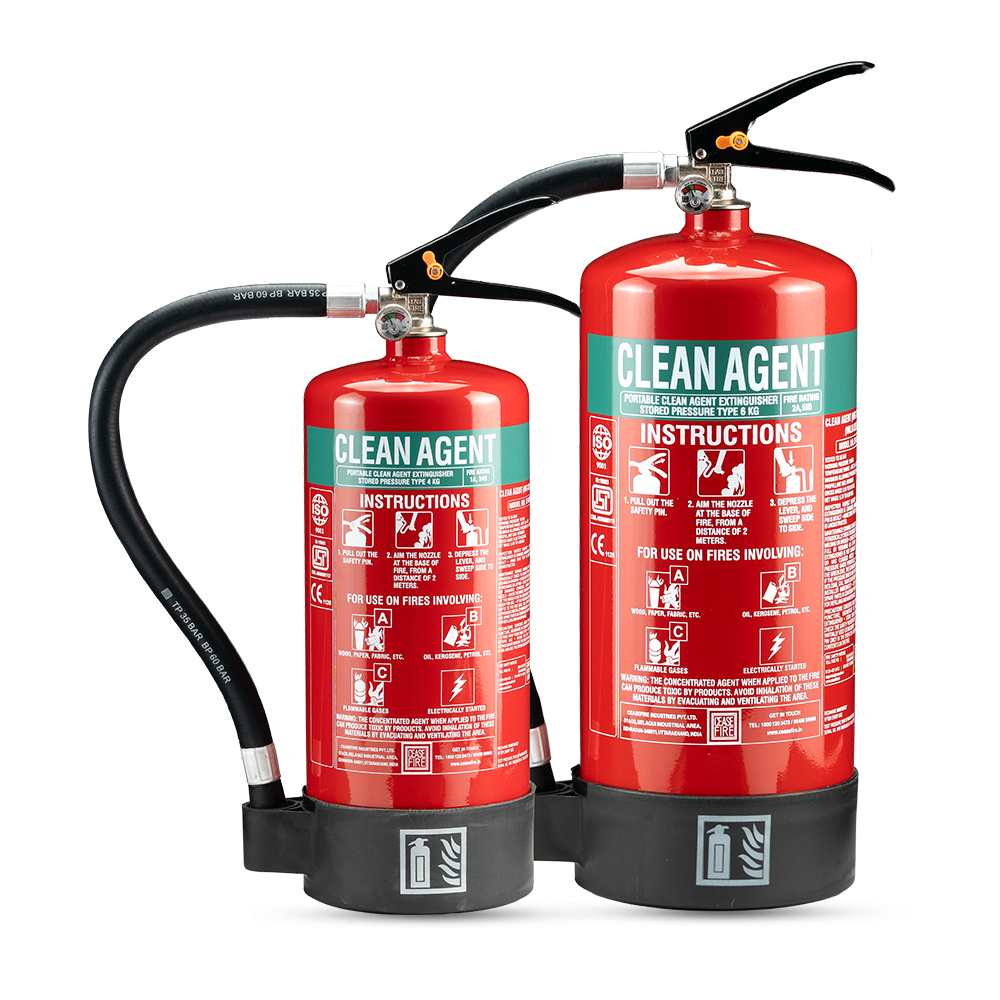

Fluoroketone (FK) Clean Agent Based Portable Fire Extinguishers
Safe to use on all your sensitive equipment, the Fluoroketone (FK) Clean Agent Extinguisher brings you the added benefit of being the world’s most advanced, and by far the most eco-friendly extinguisher. Fluoroketone (FK) Clean Agent Extinguishers leave no residue, pack in mega power and are absolutely safe for use on any sensitive electronic equipment.
Ceasefire’s Clean Agent extinguishers contain Fluoroketone (FK), the cleanest, most powerful extinguishing agent on the planet. They have zero ODP (Ozone Depletion Potential) and are the obvious choice of concerned corporates worldwide. They are extremely lightweight, yet packed with tremendous power and throw, to penetrate past even the finest grills and meshes.Ceasefire Fluoroketone (FK) Clean agent extinguishers range includes 1 Kg, 2 Kg, 4 Kg, and 6 Kg size variants.
FIRE RATINGS:
Size Ratings 2 Kg 1A, 21B 4 Kg 1A, 34B 6 Kg 2A, 55B -
Application: Fights class A, B, C and Electrically started fires.
-
Residue Free: Zero collateral damage and residue-free.
-
Pressure Gauge: Easy to read Pressure Gauge for ease of monitoring.
-
Safe Technology: Safe Low-Pressure Technology that does not displace oxygen in the fire zone.
-
Environment Friendly: Zero Ozone Depletion Potential (ODP)
-
10 Years Warranty: The 10 Years Warranty means Ceasefire is looking out for the health of your fire safety products.
-
Certification: BIS, LPCB, and PED certified.
What’s New
01. Enhanced Valve System
- PRV + NRV for safer, simpler servicing.
The enhanced valve system provides added pressure safety and enables efficient maintenance without fully depressurising the extinguisher.
02. Screen-Printed Cylinder Label
- Built to last.
Product information is screen-printed directly onto the cylinder for excellent resistance to weather conditions, tampering, scratching, rubbing, chemicals and fading- keeping critical information long lasting.
03. Glow-in-the-Dark Signage
- Find it when visibility is low.
A phosphorescent locator sign at the base helps identify the extinguisher in darkness, low visibility and smoke, enabling faster access during emergencies. Conforms to DIN standards and exceeds DIN 67510 Part 4 requirements.
04. Eco-Friendly Packaging
- Less packaging waste. More responsibility.
Recyclable paper, corrugated board and natural rubber replace conventional packaging materials, helping reduce carbon footprints and making recycling easier.
05. Easy-Lug Mount Bracket
- Quick to mount. Easy to access.
The secure “J” hanger makes installation and removal quick and convenient while keeping the extinguisher firmly in place and readily accessible.
-
Glossary Fire Extinguisher 1 Kg MS SP Red (Gun Housing) Fire Extinguisher 2Kg MS SP Red (Gun Housing) Fire Extinguisher 4Kg MS SP Red Fire Extinguisher 6Kg MS SP Red Product Code CF-001332 CF-001462 CF-001469 CF-001470 Capacity of Agent 1 (Kg) 2 (Kg) 4 (Kg) 6 (Kg) Filling Tolerance By Mass +5 (%) +5 (%) +5 (%) +5 (%) Agent FK-5-1-12 FK-5-1-12 FK-5-1-12 FK-5-1-12 Certification Standard ISO 9001, PED, IS 15683 ISO 9001, PED, IS 15683 ISO 9001, PED, IS 15683 ISO 9001, PED, IS 15683 Valve Material of Construction (MOC) Brass Brass Brass Brass Valve Construction Forging and machining Forging and machining Forging and machining Forging and machining Pressure Relief Valve (PRV) No No Yes Yes Non Return Valve (NRV) No No Yes Yes Shell Material of Construction (MOC) Steel CR2 (Dc01) Steel CR2 (Dc01) Steel CR2 (Dc01) Steel CR2 (Dc01) Shell Construction Deep Drawn & MIG Welded Deep Drawn & MIG Welded Deep Drawn & MIG Welded Deep Drawn & MIG Welded Min. Wall Thickness 1.0 (mm) 1.4 (mm) 1.2 (mm) 1.4 (mm) Diameter of Shell (approx.) 86.5 (mm) 108 (mm) 140 (mm) 160 (mm) Total Height (approx.) 325 (mm) 368 (mm) 445 (mm) 490 (mm) Test Pressure 35 (Bar) 35 (Bar) 35 (Bar) 35 (Bar) Anti-Corrosive Treatment External Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Service Pressure 10 (Bar) 10 (Bar) 10 (Bar) 10 (Bar) Type of Operating Mechanism Thumb Trigger Thumb Trigger Squeeze Grip Squeeze Grip Type of Pressure Gauge Magnetic Bourdon Tube Type Magnetic Bourdon Tube Type Magnetic Bourdon Tube Type Magnetic Bourdon Tube Type MOC and Length of Hose EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 300 mm
(mm)EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 300 mm
(mm)EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 400 mm
(mm)EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 400 mm
(mm)Minimum Throw Distance (BRD as per IS-15683) > 2 (Meter) > 2 (Meter) > 2 (Meter) > 2 (Meter) Min. Discharge Time (as per IS-15683) 8 (Sec.) 8 (Sec.) 8 (Sec.) 13 (Sec.) Applicable to Type of Fire A, B, C, & Electrical Started Fire A, B, C, & Electrical Started Fire A, B, C, & Electrical Started Fire A, B, C, & Electrical Started Fire Fire Rating 1A | 21B 1A | 21B 1A | 34B 2A | 55B Operating Temperature Range From -30 to +60
(°C)From -30 to +60
(°C)From -30 to +60
(°C)From -30 to +60
(°C)Extinguisher Label Screen printed Screen printed Screen printed Screen printed Glow in the Dark Fire Extinguisher Locator No No Yes Yes Green Packaging (Environment Friendly) Yes Yes Yes Yes Gross Weight* 3.40 to 3.60
(Kg)3.40 to 3.60
(Kg)6.20 to 6.50
(Kg)8.90 to 9.10
(Kg)Product Warranty** 10
(Year)10
(Year)10
(Year)10
(Year)Mounting Bracket Wire Bracket Wire Bracket L Bracket with J hanger L Bracket with J hanger *It includes Empty Extinguisher, Contents, Plastic Base, Hose / Horn and bracket.
**The warranty is subject to the terms and conditions mentioned on the warranty card.
