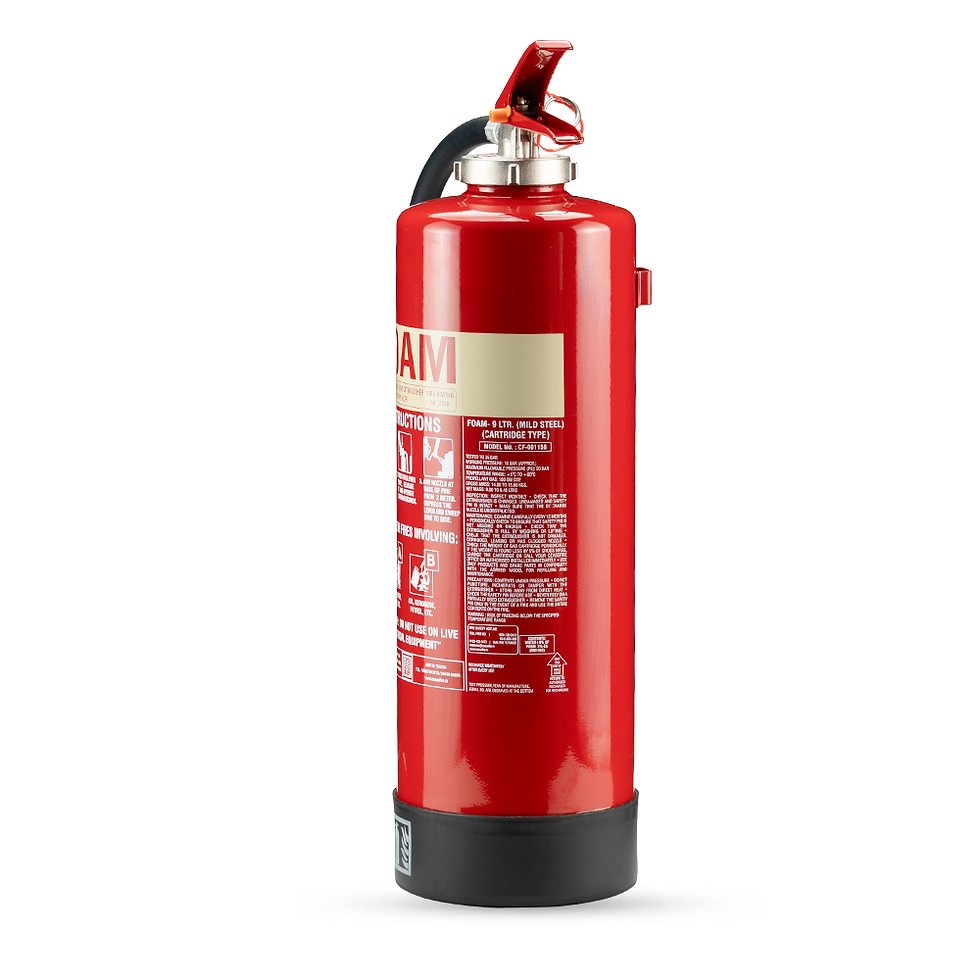

Foam Cartridge Type Portable Fire Extinguishers
Foam Based Portable (Spot Pressure) extinguishers use a simple activation mechanism, making them faster and easier to use with a simple turn of a lever. The cartridge type technology makes the extinguishers highly safe for all types of spaces as the pressure is created only at the time of fire fighting.
.
The quickest way to kill a fire is to not let it feed off the oxygen in the vicinity. Ceasefire’s Foam Based Portable Extinguishers use a chemical foam that blankets the flames and cuts off the oxygen supply. While they are effective against Class A and B fires, they are ideal for use on burning liquids like oil and petrol.Ceasefire's Wheeled Foam extinguishers range in 6 and 9 Litres. in Mild Steel containers.
FIRE RATINGS:
Size
6 Ltrs
9 Ltrs
Ratings
3A, 144B
4A, 233B
-
Application: Fights Class A and B fires.
-
Simplicity in handling: Long and flexible hose pipe aids simplicity in handling.
-
Discharge mechanism: A simple squeeze grip activation mechanism allows you to control the discharge and optimise use of the extinguishing agent.
-
EPDM rubber hose pipe: Superior grade EPDM rubber is far more flexible than the normal rubber used in most hosepipes. It is also far less prone to cracks.
-
World-class quality: Comprehensive Helium Tests and Leak Tests also guarantee that the products you buy are manufactured according to the world's most stringent quality standards.
-
6 year Warranty: The 6 year Warranty means Ceasefire is looking out for the health of your fire safety products.
-
Highest Standards: BIS and PED certified.
What’s New
01. Screen-Printed Cylinder Label
Built to last.
Product information is screen-printed directly onto the cylinder for excellent resistance to weather conditions, tampering, scratching, rubbing, chemicals and fading- keeping critical information long lasting.02. Glow-in-the-Dark Signage
Find it when visibility is low.
A phosphorescent locator sign at the base helps identify the extinguisher in darkness, low visibility and smoke, enabling faster access during emergencies. Conforms to DIN standards and exceeds DIN 67510 Part 4 requirements.03. Eco-Friendly Packaging
Less packaging waste. More responsibility.
Recyclable paper, corrugated board and natural rubber replace conventional packaging materials, helping reduce carbon footprints and making recycling easier.-
Glossary Fire Ext Foam 6L MS CT Red Fire Ext Foam 9L CT SP Red Product Code CF-001157 CF-001158 Capacity of Agent 6
(L)9
(L)Filling tolerance by Volume -5 to 0
(%)-5 to 0
(%)Agent 6% of KV Foam 3% C-6 6% of KV Foam 3% C-6 Certification Standard ISO 9001, PED, IS 15683 ISO 9001, PED, IS 15683 Valve Material of Construction (MOC) Brass Brass Valve Construction Forging and machining Forging and machining Shell Material of Construction (MOC) Steel CR2 (DC01) Steel CR2 (DC01) Shell Construction Deep Drawn & MIG Welded Deep Drawn & MIG Welded Min. Wall Thickness 1.4
(mm)1.4
(mm)Diameter of Shell (approx.) 160
(mm)175
(mm)Total Height (approx.) 550
(mm)635
(mm)Test Pressure 35
(Bar)35
(Bar)Anti-Corrosive Treatment External Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Service Pressure 10
(Bar)10
(Bar)Type of Operating Mechanism Squeeze Grip Squeeze Grip Cartridge Size 60 180 MOC and Length of Hose EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion of Hose 500 mm
(mm)EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion of Hose 500 mm
(mm)Minimum Throw Distance (BRD as per IS-15683) 5
(Meter)6
(Meter)Min. Discharge Time (as per IS-15683) 15
(Sec.)15
(Sec.)Applicable to Type of Fire A, B A, B Fire Rating 3A | 144B 4A | 233B Operating Temperature Range From +5 to +60
(°C)From +5 to +60
(°C)Extinguisher Label Screen printed Screen printed Glow in the Dark Locator Yes Yes Green Packaging (Environment Friendly) Yes Yes Gross Weight* 10.10 to 10.40
(Kg)14.80 to 15.60
(Kg)Product Warranty** 6
(Year)6
(Year)Mounting Bracket J hanger J hanger *It includes Empty Extinguisher, Contents, Hose / Gun and trolley. **The warranty is subject to the terms and conditions mentioned on the warranty card.
