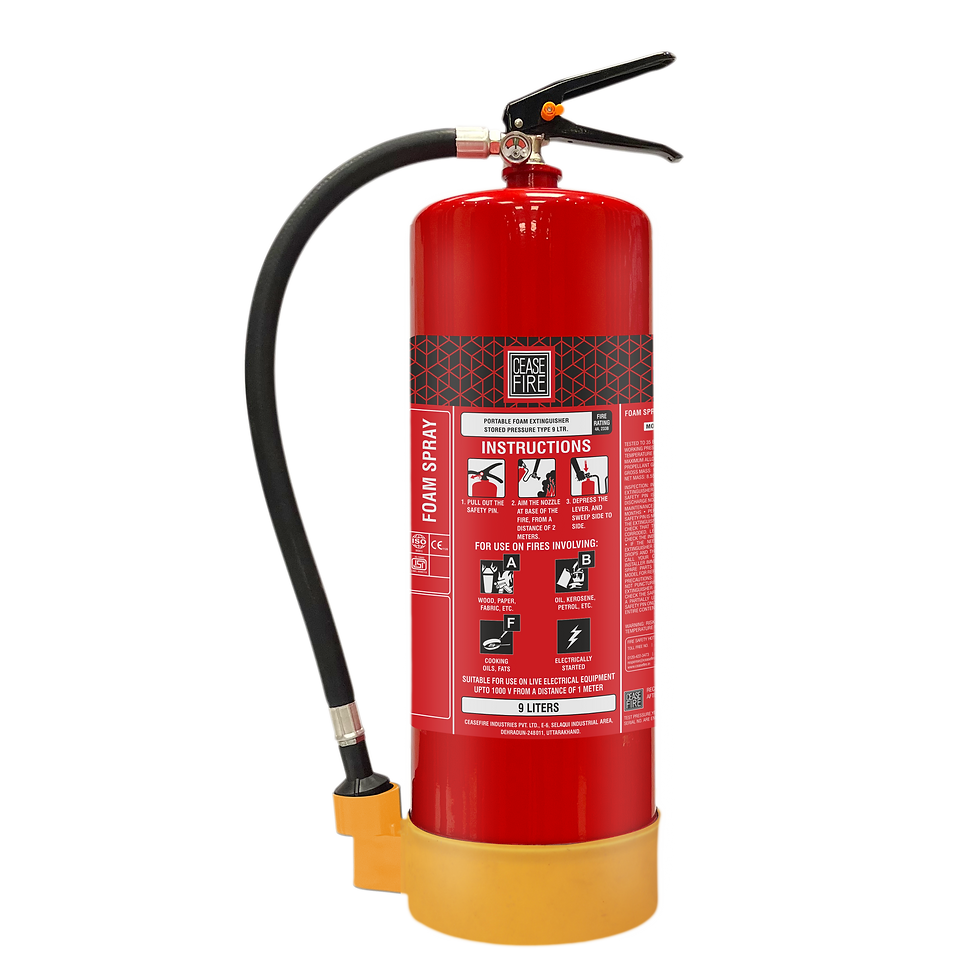

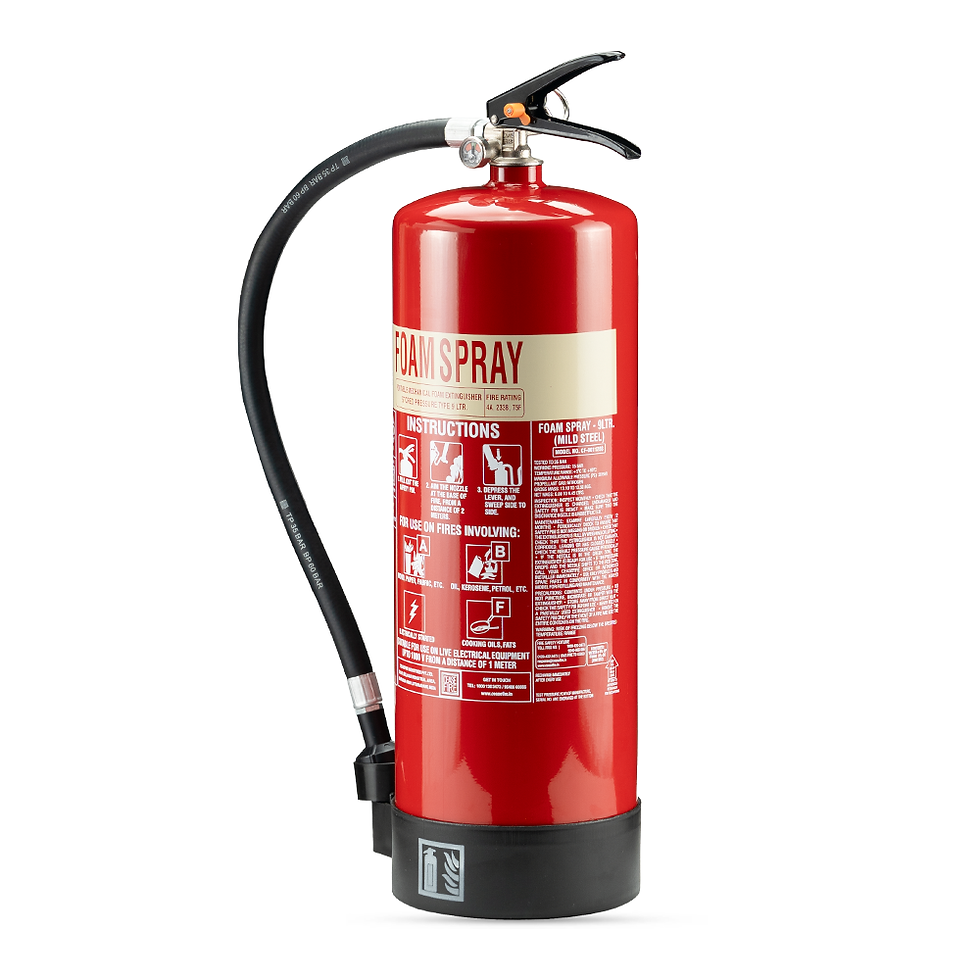

Foam Portable Extinguishers (Spray Model)
The quickest way to kill a fire is by limiting the oxygen supply in the vicinity. Ceasefire’s Foam Spray model extinguishers forms a foam blanket, cutting down on the oxygen supply.
Ceasefire’s Foam Spray model extinguishers use specialised nozzels to create a fine spray of the extinguishant that makes it effective on Class A, B, F, and electrically started fires, making them more effective against the fire.
The range is available in 3 Ltrs., 6 Ltrs. and 9 Ltrs. capacities in both Stainless Steel and Mild Steel containers.
FIRE RATINGS:
Size Ratings 3 Ltr 2A, 89B, 25F 6 Ltr 3A, 144B, 25F 9 Ltr 4A, 233B, 75F - Classification: Fights class A, B, F & Electrically Started Fires.
- Container Construction: Deep Drawn cylinder construction.
- Convenient handle: Squeeze Grip mechanism for quick and easy use.
- Special safety valves: Equipped with Schraeder Valve and Pressure Relief Valve.
- Safe to use on electrical fires: Suitable for use on live electrical equipment up to 1000 V from a distance of 1 meter.
- Certification: LPCB, BSI Kitemark, PED, MED, and UKCA-MED certified.
What’s New
01. Enhanced Valve System
- PRV + NRV for safer, simpler servicing.
The enhanced valve system provides added pressure safety and enables efficient maintenance without fully depressurising the extinguisher.
02. Screen-Printed Cylinder Label
- Built to last.
Product information is screen-printed directly onto the cylinder for excellent resistance to weather conditions, tampering, scratching, rubbing, chemicals and fading- keeping critical information long lasting.
03. Glow-in-the-Dark Signage
- Find it when visibility is low.
A phosphorescent locator sign at the base helps identify the extinguisher in darkness, low visibility and smoke, enabling faster access during emergencies. Conforms to DIN standards and exceeds DIN 67510 Part 4 requirements.
04. Eco-Friendly Packaging
- Less packaging waste. More responsibility.
Recyclable paper, corrugated board and natural rubber replace conventional packaging materials, helping reduce carbon footprints and making recycling easier.
05. Easy-Lug Mount Bracket
- Quick to mount. Easy to access.
The secure “J” hanger makes installation and removal quick and convenient while keeping the extinguisher firmly in place and readily accessible.
Glossary Fire Ext Foam 3L MS SP Red (Spray model) Fire Ext Foam 6L MS SP Red (Spray model) Fire Ext Foam 9L MS SP Red (Spray model) Product Code CF-001244S CF-001126S CF-001128S Capacity of Agent 3 (L) 6 (L) 9 (L) Filling Tolerance By Volume -5 (%) -5 (%) -5 (%) Agent 6% of KV Foam 3% C-6 6% of KV Foam 3% C-6 6% of KV Foam 3% C-6 Certification Standard ISO 9001, PED, IS 15683 ISO 9001, PED, IS 15683 ISO 9001, PED, IS 15683 Valve Material of Construction (MOC) Brass Brass Brass Valve Construction Forging and machining Forging and machining Forging and machining Pressure Relief Valve (PRV) Yes Yes Yes Non Return Valve (NRV) Yes Yes Yes Shell Material of Construction (MOC) Steel CR2 (DC01) Steel CR2 (DC01) Steel CR2 (DC01) Shell Construction Deep Drawn & MIG Welded Deep Drawn & MIG Welded Deep Drawn & MIG Welded Min. Wall Thickness 1.2 (mm) 1.4 (mm) 1.4 (mm) Diameter of Shell (approx.) 140 (mm) 160 (mm) 175 (mm) Total Height (approx.) 440 (mm) 520 (mm) 615 (mm) Test Pressure 35 (Bar) 35 (Bar) 35 (Bar) Anti-Corrosive Treatment Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Service Pressure 15 (Bar) 15 (Bar) 15 (Bar) Type of Operating Mechanism Squeeze Grip Squeeze Grip Squeeze Grip Type of Pressure Gauge Magnetic Bourdon Tube Type Magnetic Bourdon Tube Type Magnetic Bourdon Tube Type MOC and Length of Hose EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 300 mm
(mm)EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 400 mm
(mm)EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion Of Hose 500 mm
(mm)Minimum Throw Distance (BRD as per IS-15683) > 2 (Meter) > 2 (Meter) > 2 (Meter) Min. Discharge Time (as per IS-15683) 9 (Sec.) 15 (Sec.) 15 (Sec.) Applicable to Type of Fire A, B, F & ESF A, B, F & ESF A, B, F & ESF Fire Rating 2A | 89B | 25F 3A | 144B | 25F 4A | 233B | 75F Operating Temperature Range From +5 to +60
(°C)From +5 to +60
(°C)From +5 to +60
(°C)Extinguisher Label Screen printed Screen printed Screen printed Glow in the Dark Fire Extinguisher Locator Yes Yes Yes Green Packaging (Environment Friendly) Yes Yes Yes Gross Weight* Approx. 5.75
(Kg)9.40 to 9.73
(Kg)14.70 to 15.15
(Kg)Product Warranty** 6 (Year) 6 (Year) 6 (Year) Mounting Bracket L Bracket with J hanger L Bracket with J hanger L Bracket with J hanger *It includes Empty Extinguisher, Contents, Plastic Base, Hose / Horn and bracket.
**The warranty is subject to the terms and conditions mentioned on the warranty card.
