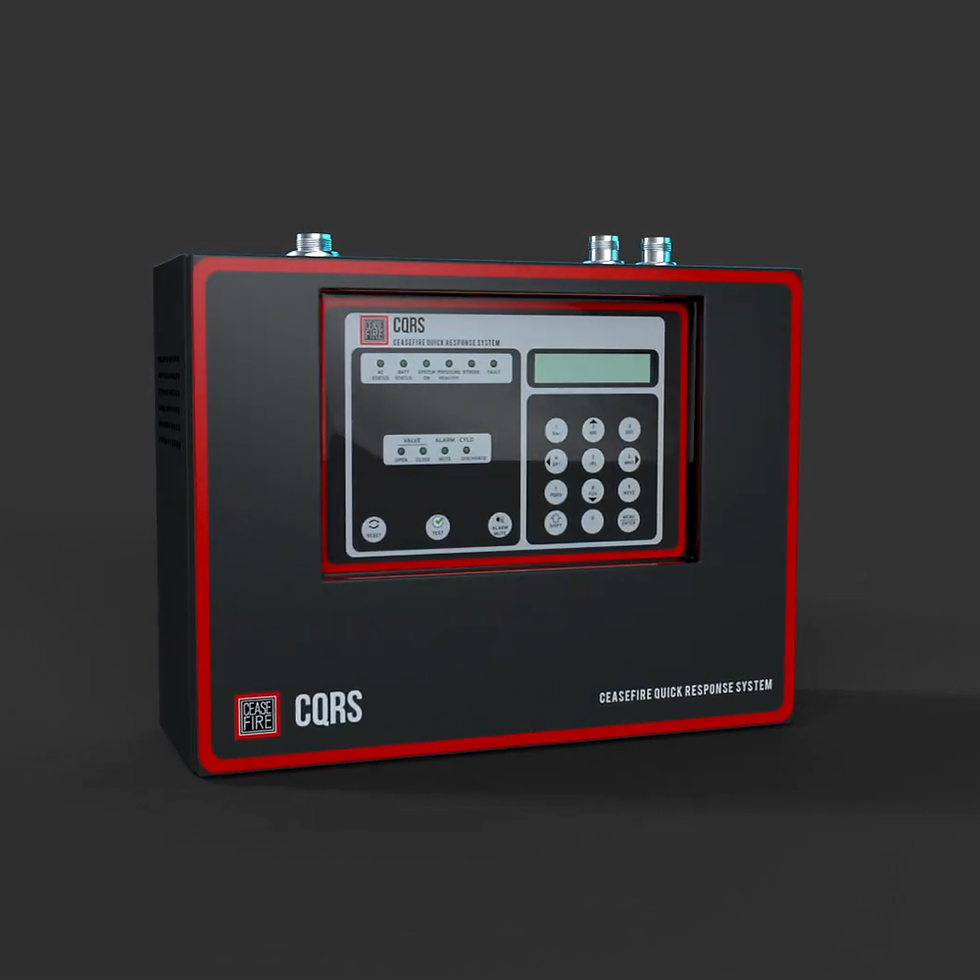

IN - PANEL TUBE BASED SUPPRESSION SYSTEM DIRECT LOW PRESSURE (HFC227ea)
Ceasefire is the only Indian company manufacturing state-of-the-art HFC 227ea® Suppression systems.
The revolutionary Ceasefire Quick Response System combines ground-breaking technology with functional simplicity. Armed with a UL listed, UV protected, Multi-layered, Modified Polyamide, heat-sensing tube, this direct system is entirely self-activated, and requires no human intervention once it has been installed.
When the flame comes in contact with the heat-sensitive tubing and reaches a temperature of 150 - 180°C, the tubing bursts open at that exact spot and forms a miniature nozzle.
The pneumatic mechanism triggers the valve of the extinguisher and sprays the extinguishing agent out of the tube directly onto the flame, dousing the fire instantaneously.
Because the extinguishing agent used is HFC227ea this system is effective to combat any kind of fire.
This is an ideal solution in case of fire in a single location, whether small or large, and can be designed to suit the specific needs of the premises.
Classification: Works on class A, B, C fires and fires involving electrically-charged devices. Effective on a wide range of flammable and combustible materials.
Self- Actuated: Does not require any power supply and will function normally in the event of a power outage.
Electronics-Friendly: Shown to be electrically non-conductive and is safe for electrically charged equipment, it is kinder on electronics than the majority of extinguishing agents available in the market.
High-value Risk Protection: Suitable for protection on a range of high-value risks as it virtually eliminates damage to high-tech equipment, artwork and other delicate and sensitive objects.
No Clean-up Required After Discharge: After a discharge, the extinguishing agent can be removed by simple ventilation.
24-hour Protection: Automatic detection and actuation controls ensure fire protection is always ‘on’.
Flexible Design: Flexible tubing allows protection in areas that are difficult to access and may not be able to accommodate any other means of defection.
International Quality Standards: The Ceasefire Quick Response System is manufactured to the highest global and national standards like CE certified and is LPCB tested for Forced and Natural Air Flow cabinet applications.
Rugged Design: Can withstand even harsh conditions where other types of detection systems might be rendered inadequate.
Residue-Free: Being a clean agent, it won’t leave behind oily residue, particulate or corrosive material.
