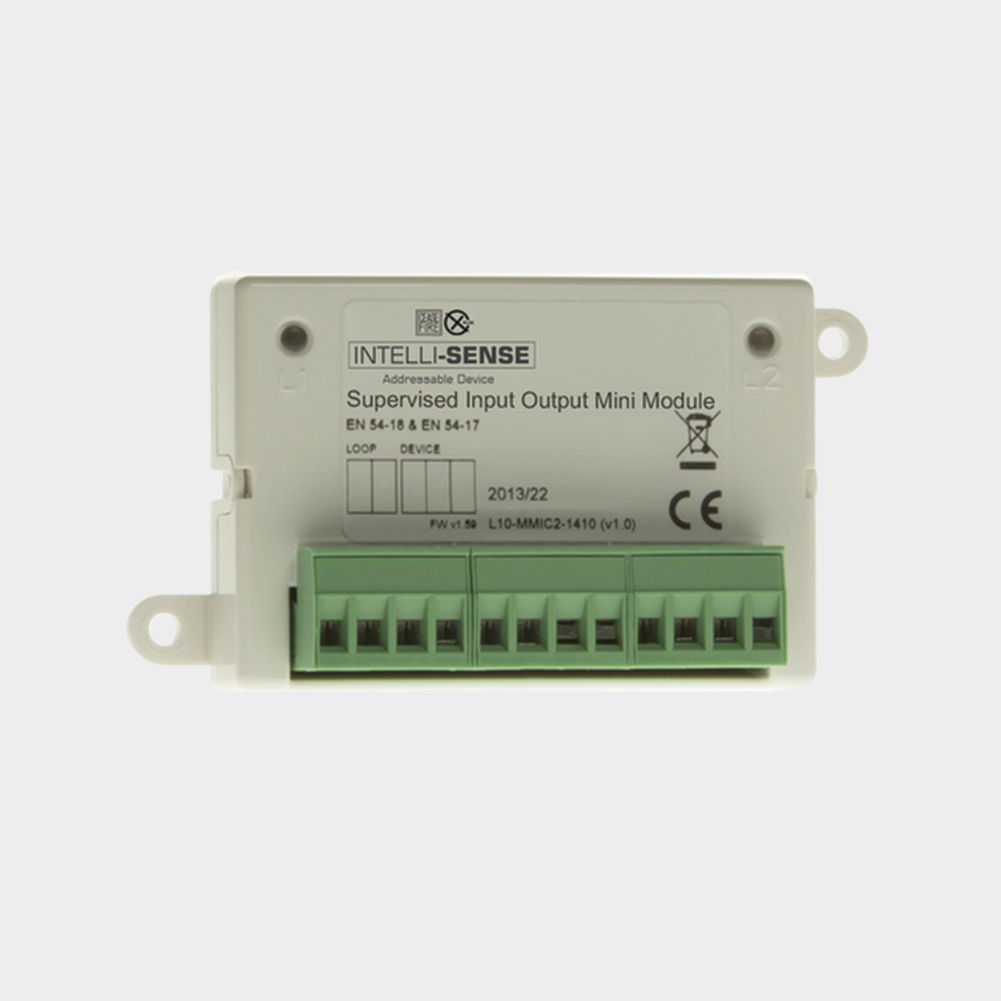

Intelligent-Input-&-Output-Module-(Mini-Mount) TI-002298
- Employs the highly reliable fully digital communication protocol
- 3rd party approval to EN54-17 and EN54-18
- Integrated short circuit isolators to protect and maintain operation
- Loop powered with very low current consumption
- Robust proven design offering operation over a wide temperature range
- Provides both a fully monitored input and output circuit
- Fast fit plug-in cable connections
- Alternate mechanical variants available to satisfy different applications
- Smaller mechanical package size enables the module to be installed inside other enclosures
- Bi-colour status LED
- 1 year product warranty
1 Type Addressable 2 Model TI-002298 3 Number of Monitored Input Circuit 1 4 Number of Supervised Output 1 5 Operating Voltage 15-40V DC 6 Standby Current Consumption 250µA @ 24V DC 7 Alarm Current Consumption 6-12mA @ 24V DC 8 Maximum Output Rating 2A @ 30V DC 9 Ambient Temperature -10°C to +55°C 10 Relative Humidity 95% (non condensing) 11 Dimensions (Width x Height x Depth) 75mm x 52mm x 18mm (ex-fixing) 12 Standard EN 54-17; EN 54-18 13 Certification/Approval Authority BSI 14 LED Indicator Bi-colour LED 15 Short Circuit/Fault Isolator Built-in short-circuit isolator 16 Protection Class IP 65 17 Mode of Addressing Electronically Addressed 18 Product Warranty 1 Year Warranty Brochure Price List Datasheets Manuals
