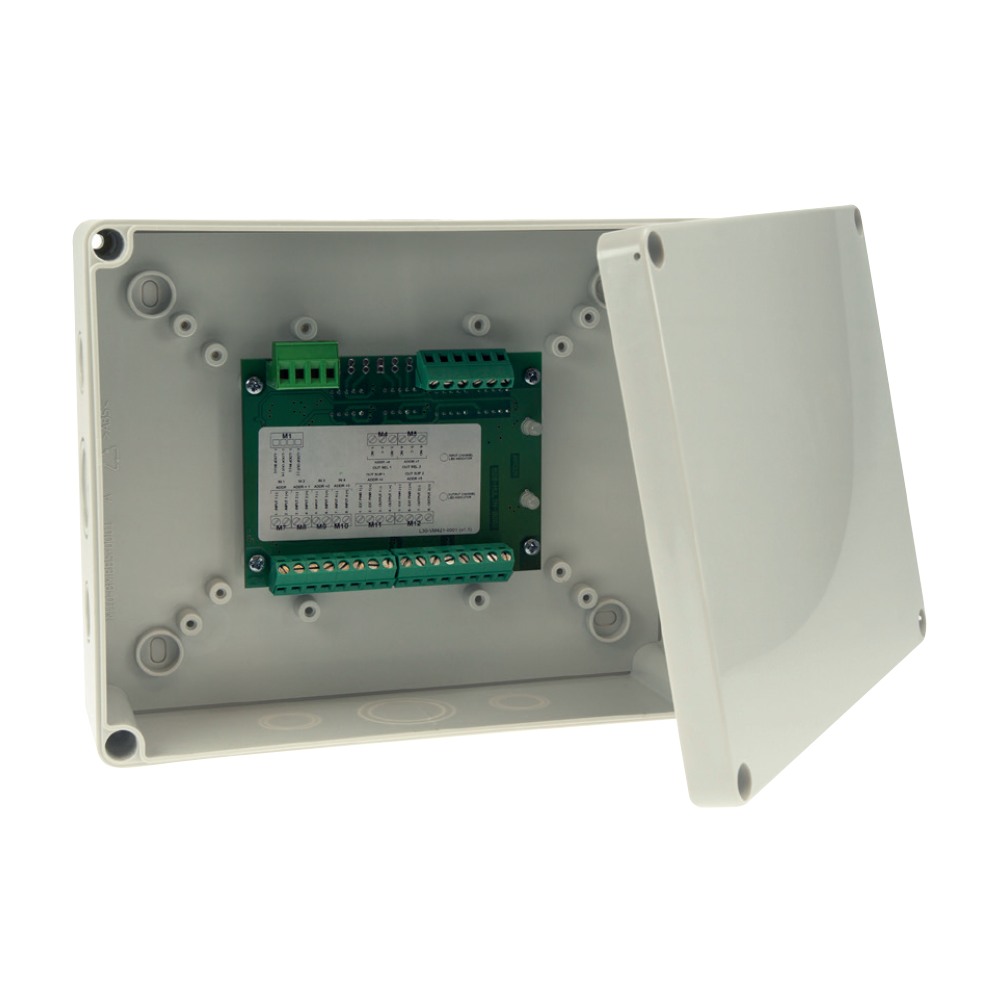

Intelligent-Multiway-4-Input,-2-Relay-Output,-and-2-Supervised-Output(TI-002218)

Short circuit isolator built in

1 year product warranty

Auto addressing capability

Addressable via handheld programmer

Cable entry via knockouts on each side of the box

Ideal for application which require multiple inputs at the same location

"Ideal for application which require 2 supervised output and 2 relay (form - c) outputs at the same location

1	Type	Addressable
2	Model	TI-002218
3	Number of Monitored Input Circuit	4
4	Number of Supervised Output	2
5	Number of Relay Output	2
6	Operating Voltage	18-40V DC
7	Standby Current Consumption at 24V	500�A @ 24V DC
8	Ambient Temperature	-10�C to +55�C
9	Relative Humidity	95% (non condensing)
10	Dimensions (Width x Height x Depth)	210mm x 170mm x 65mm
11	Standard	EN 54-17; EN 54-18
12	Certification/Approval Authority	IMQ
13	LED Indicator	Bi-colour LED
14	Short Circuit/Fault Isolator	Built-in short-circuit isolator
15	Protection Class	IP 65
16	Mode of Addressing	Electronically Addressed
17	Product Warranty	1 Year Warranty
