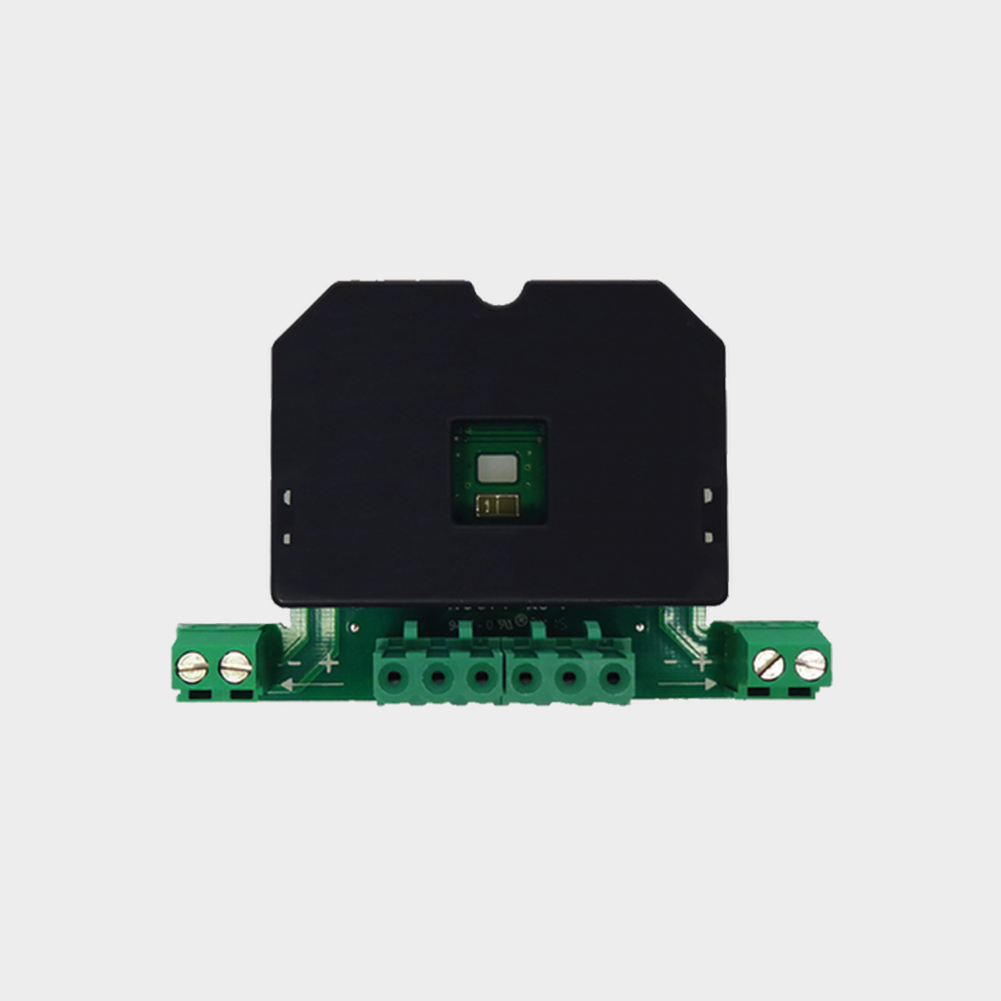

Intelligent-Sounder-Interface-Module-(TI-002260)
- Flexible Modular Design
- Approved by LPCB to EN 54-17 and EN 54-18
- Built in short circuit loop isolation
- Intelligent two stage alarm capability
- Fits CFX-Plus modular wall sounders and Sounder Beacons
- Easy to install
- Manual and Auto addressing options
- Optional Microphone self test facility
- Auto and Manual address options
1 Type Addressable 2 Model TI-002260 3 Compatibility With Pro-Sense Sounders/ Sounder Beacon
TI-002272
TI-0022734 Operating Voltage 18-40V DC 5 Alarm Current Consumption 5-8mA @ 24V DC (with TI-002272 at High Volume)
12-25mA @ 24V DC (with TI-002273 at High Volume)6 Ambient Temperature -25°C to +70°C 7 Relative Humidity 85% (non condensing) 8 Dimensions (Width x Height x Depth) 82mm x 52mm x 20mm (ex-fixing) 9 Standard EN 54-17; EN 54-18 10 Certification/Approval Authority LPCB 11 LED Indicator Bi-colour LED 12 Short Circuit/Fault Isolator Built-in short-circuit isolator 13 Protection Class IP 65 14 Mode of Addressing Electronically Addressed 15 Product Warranty 1 Year Warranty Brochure Price List Datasheets Manuals
