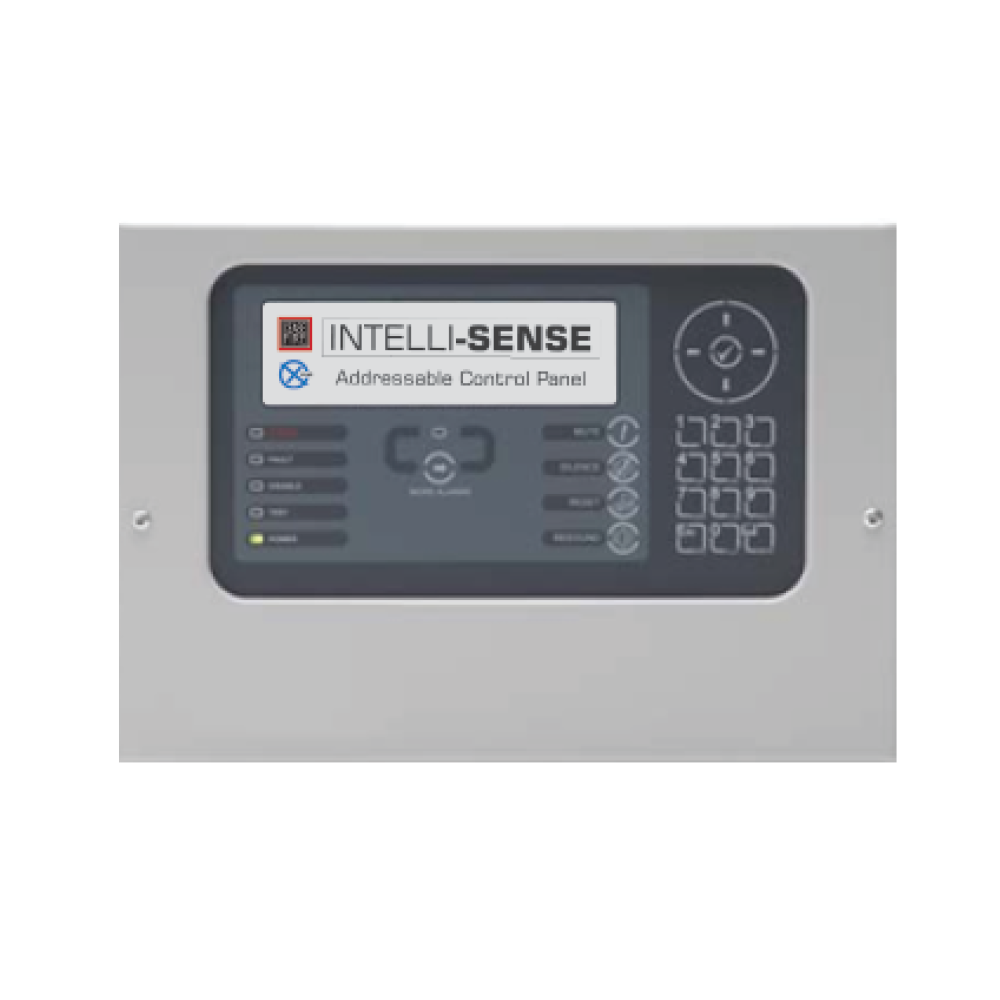

Remote-Control-Terminal---Fault-Tolerant(TI-002321-FT)
The RCT has additional sector based control
keys for Silence, Mute, Resound and Reset,
which allows other networked panels to
selectively respond to controls as
programmed. E.g. on a site with multiple
buildings, a user may be allowed to silence
and reset fires originating in their own
building.Fires originating from other buildings
are displayed but cannot be reset.Fully on-site programmable via onboard
alphanumeric keypad or PC configuration
tools.View all information from across the network By using flash memory and an advanced
graphical display the remote terminals can be
easily configured to operate in virtually any
language, with any character set and allows
for the installer?s logo and company details to
be displayed on the LCD display during
normal operation.Networked for System Display or Control Programmable switch input Graphical LCD display Intelli-Sense-NeT compatible Slide-in labels Small, robust and compact 24V DC operating voltage Disable/enable options 1-year warranty 1 Type Networkable 2 Model TI-002321-FT 3 Display White backlit 240x64 graphical LCD 4 LED Indicators 2 red (1 x Fire, 1 x Alarm), 1 green (Power) & 3 amber (Fault & System) 5 Keypads Alpha numeric keypad, navigation keys & onboard buzzer mute facility 6 Controls System keys for Mute, Reset, Silence, Resound 7 Key-Switch Input Optional level 2 access enable key switch 8 Power Supply Input 24 VDC, 115mA (/FT: 150mA) operating range 15-30V 9 External Supply Monitoring Monitored external fault input 10 Number of Fire Zones 2000 11 USB/Serial Ports 1xUSB 12 Programming Via on-board keypad or PC running Windows tools 13 Enclosure Steel IP30 14 Cable Entry 20mm knock-outs. 4 x top and 4 x rear 15 Colour RAL7035 16 Metal work Options Semi flushing bezel, special finishes including Stainless & Chrome Networking On-board Fault-Tolerant network card (TI-002324).
