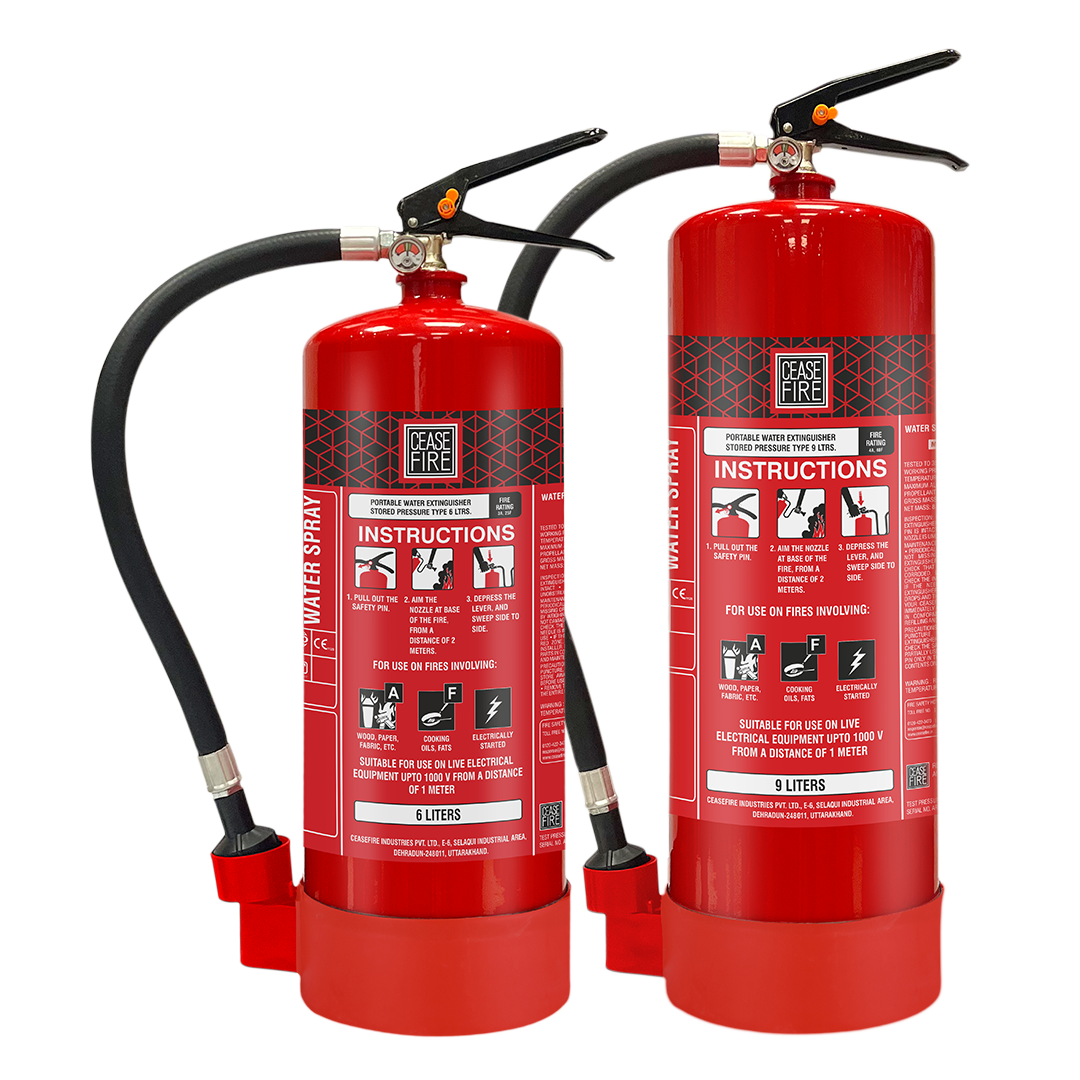

Water Portable Extinguishers (Spray Model)
Water is a natural firefighting agent that helps bring down the temperature of the fire and the area around it. Ceasefire’s Water Spray model extinguishers use specialised nozels to create a fine spray of the extinguishant that makes it effective on Class A, F, and electrically started fires, making them more effective against the fire.
The Ceasefire Water Spray model extinguishers are available in 6 Ltrs. and 9 Ltrs. capacities in both Stainless Steel and Mild Steel containers.
FIRE RATINGS:
Size Ratings 6 Ltr 3A, 25F 9 Ltr 4A, 75F -
Classification: Fights Class A, F, and electrically started fires.
-
EPDM rubber hosepipe: Superior grade EPDM rubber makes the hose more flexible and less prone to cracks.
-
Pressure gauge: Easy-to-read pressure gauge for ease of monitoring.
-
Internal coating: Epoxy polyester-coated internal lining.
-
Container Construction: Deep Drawn cylinder construction.
-
Special nozzle: Extinguishant dispersed via a specially designed Spray Nozzle.
-
Safe to use on electrical fires: Suitable for use on live electrical equipment up to 1000 V from a distance of 1 meter.
-
Certification: LPCB and CE certified.
What’s New
01. Enhanced Valve System
- PRV + NRV for safer, simpler servicing.
The enhanced valve system provides added pressure safety and enables efficient maintenance without fully depressurising the extinguisher.
02. Screen-Printed Cylinder Label
- Built to last.
Product information is screen-printed directly onto the cylinder for excellent resistance to weather conditions, tampering, scratching, rubbing, chemicals and fading- keeping critical information long lasting.
03. Glow-in-the-Dark Signage
- Find it when visibility is low.
A phosphorescent locator sign at the base helps identify the extinguisher in darkness, low visibility and smoke, enabling faster access during emergencies. Conforms to DIN standards and exceeds DIN 67510 Part 4 requirements.
04. Eco-Friendly Packaging
- Less packaging waste. More responsibility.
Recyclable paper, corrugated board and natural rubber replace conventional packaging materials, helping reduce carbon footprints and making recycling easier.
05. Easy-Lug Mount Bracket
- Quick to mount. Easy to access.
The secure “J” hanger makes installation and removal quick and convenient while keeping the extinguisher firmly in place and readily accessible.
-
GLOSSARY FIRE EXT WATER 6L MS SP RED (SPRAY) FIRE EXT WATER 9L MS SP RED (SPRAY) PRODUCT CODES CF-001130S CF-001132S AGENT WATER WATER STORED PRESSURE/CARTRIDGE STORED PRESSURE STORED PRESSURE CERTIFICATION OR VERIFING BODY EUROCERT, BIS EUROCERT, BIS CERTIFICATION TYPE PED, IS 15683 PED, IS 15683 BIS MARKING YES YES CE MARKING YES YES MINIMUM BULK RANGE THROW (AS PER IS 15683) > 2 METERS > 2 METERS GROSS WEIGHT (APPROX) 9.10 TO 9.40 KG 13.10 TO 13.50 KG NET MASS 6.2 TO 6.3 LTR 8.55 TO 9.00 LTR DISCHARGE MECHANISM SQUEEZE GRIP SQUEEZE GRIP APPLICABLE ON FIRES A, F & ESF A, F & ESF IS 15683 RATINGS 3A, 25F 4A, 75F CAN CONSTRUCTION DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED VALVE / CAP CONSTRUCTION FORGING AND MACHINING FORGING AND MACHINING INTERNAL COATING EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EXTERNAL COATING EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER HELIUM LEAK DETECTION TESTING YES YES WARRANTY IN YEARS 6 6 WORKING PRESSURE 15 BAR 15 BAR HYDROSTATIC TEST PRESSURE 35 BAR 35 BAR DIA. OF SHELL (OD) 160 MM 175 MM HEIGHT OF FIRE EXT. (APPROX) 520 MM 615 MM BODY THICKNESS (APPROX) 1.4 MM 1.4 MM CYLINDER MATERIAL SPEC. STEEL CR2(DC01) STEEL CR2(DC01) OPERATING TEMPERATURE 5 °C TO 60°C 5 °C TO 60°C
