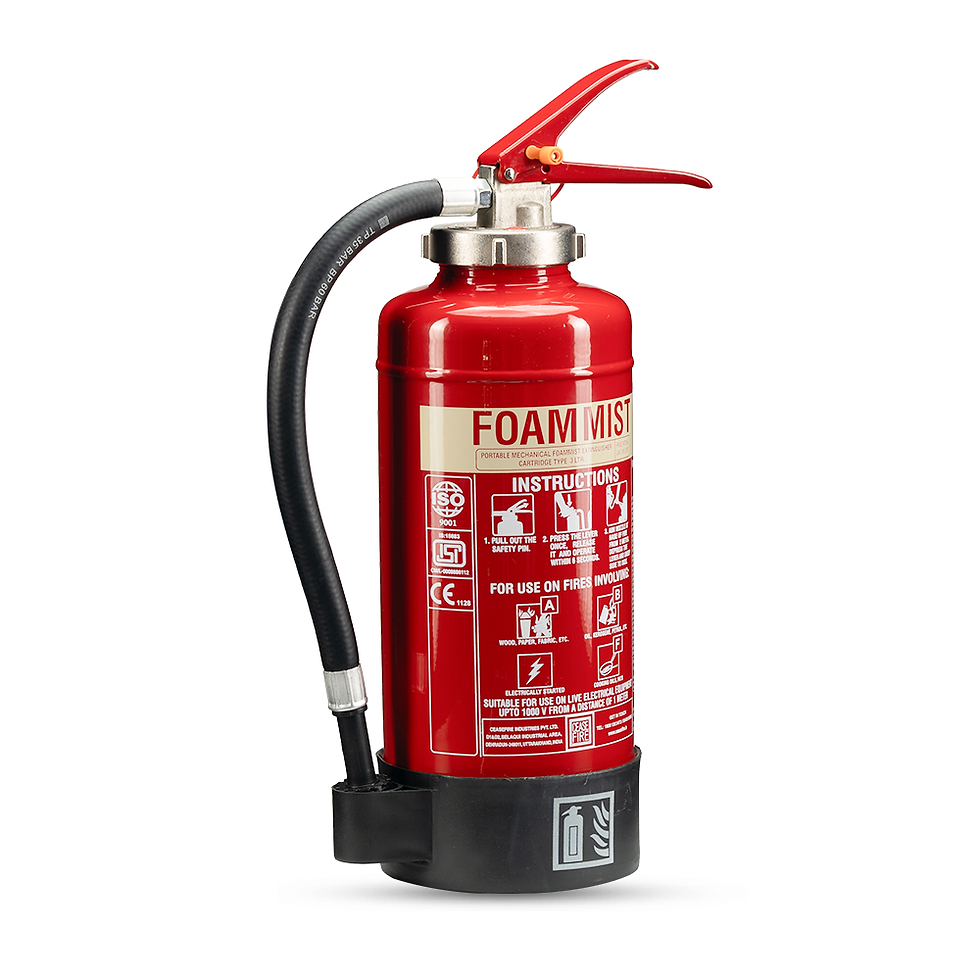

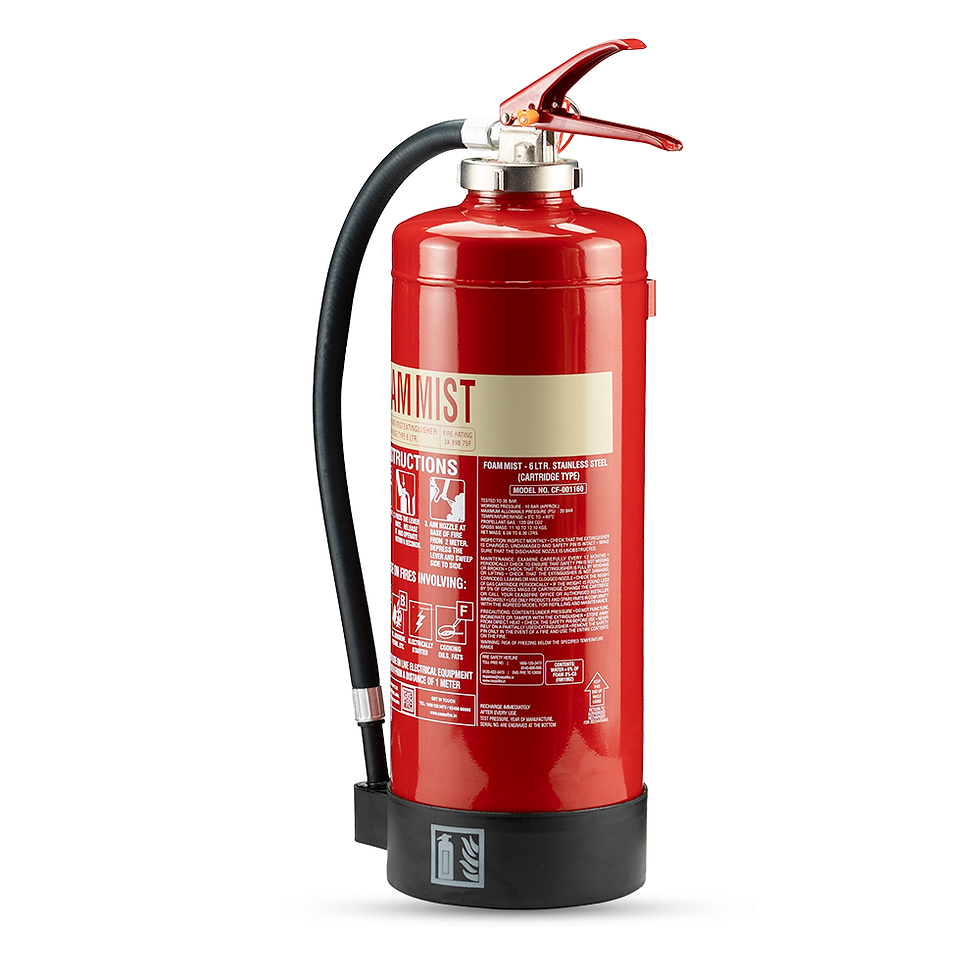

Foammist Cartridge Type Portable Fire Extinguishers
This cartridge extinguisher uses the powerful Foammist extinguishing agent to take on the biggest of fires. Foammist is a revolutionary technology wherein the power of foam is multiplied hundreds of times over.
In Ceasefire’s Foammist-based Cartridge the foam in the container combines with CO2 in the cartridge, and is released through the mist generator nozzle as Foammist. Under 80 microns in size, this mist envelopes over the fire, cutting off the oxygen supply and putting out the fire.
The range is available in 3 and 6 Ltrs. capacities in Stainless Steel containers.
FIRE RATINGS:
Size
Ratings
3 Ltr
2A, 55B, 25F
6 Ltr
3A, 89B, 75F
-
Classification: Fights class A, B, C & Electrically Started Fires.
-
Container Construction: Deep Drawn cylinder construction.
-
Convenient handle: Squeeze Grip mechanism for quick and easy use.
-
Safe to use: Spot pressure technology makes extinguishers safe and reliable.
-
9 year Warranty: The 9 year Warranty means Ceasefire is looking out for the health of your fire safety products.
-
Certification: BIS and PED certified.
What’s New
01. Screen-Printed Cylinder Label
Built to last.
Product information is screen-printed directly onto the cylinder for excellent resistance to weather conditions, tampering, scratching, rubbing, chemicals and fading- keeping critical information long lasting.02. Glow-in-the-Dark Signage
Find it when visibility is low.
A phosphorescent locator sign at the base helps identify the extinguisher in darkness, low visibility and smoke, enabling faster access during emergencies. Conforms to DIN standards and exceeds DIN 67510 Part 4 requirements.03. Eco-Friendly Packaging
Less packaging waste. More responsibility.
Recyclable paper, corrugated board and natural rubber replace conventional packaging materials, helping reduce carbon footprints and making recycling easier.-
Glossary Fire Ext Foammist 3L SS CT Red Fire Ext Foammist 6L SS CT Red Product Code CF-001246 CF-001160 Capacity of Agent 3 (L) 6 (L) Filling Tolerance By Volume 0 to +5 (%) 0 to +5 (%) Agent 6% of KV Foam 3% C-6 6% of KV Foam 3% C-6 Certification Standard ISO 9001, PED, IS 15683 ISO 9001, PED, IS 15683 Valve Material of Construction (MOC) Brass Brass Valve Construction Forging and machining Forging and machining Shell Material of Construction (MOC) SS 304 (1.4301) SS 304 (1.4301) Shell Construction Drawn Rolled & MIG Welded Drawn Rolled & MIG Welded Min. Wall Thickness 1.5 (mm) 1.5 (mm) Diameter of Shell (approx.) 140 (mm) 175 (mm) Total Height (approx.) 445 (mm) 600 (mm) Test Pressure 35 (Bar) 35 (Bar) Anti-Corrosive Treatment External Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 Service Pressure 10 (Bar) 10 (Bar) Type of Operating Mechanism Squeeze Grip Squeeze Grip Cartridge Size 60 (Gm) 120 (Gm) MOC and Length of Hose EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion of Hose 300mm
(mm)EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion of Hose 500 mm
(mm)Minimum Throw Distance (BRD as per IS-15683) > 2 (Meter) > 2 (Meter) Min. Discharge Time (as per IS-15683) 9 (Sec.) 15 (Sec.) Applicable to Type of Fire A, B, F & Electrical Started Fire. A, B, F & Electrical Started Fire. IS Fire Rating 2A | 55B | 25F 3A | 89B | 75F Operating Temperature Range From +5 to +60 (°C) From +5 to +60 (°C) Extinguisher Label Screen printed Screen printed Glow in the Dark Locator Yes Yes Green Packaging (Environment Friendly) Yes Yes Gross Weight* 7.0 to 7.20
(Kg)11.10 to 12.10
(Kg)Product Warranty** 9 (Year) 9 (Year) Mounting Bracket J hanger J hanger *It includes Empty Extinguisher, Contents, Plastic Base, Hose / Horn and bracket.
**The warranty is subject to the terms and conditions mentioned on the warranty card.
