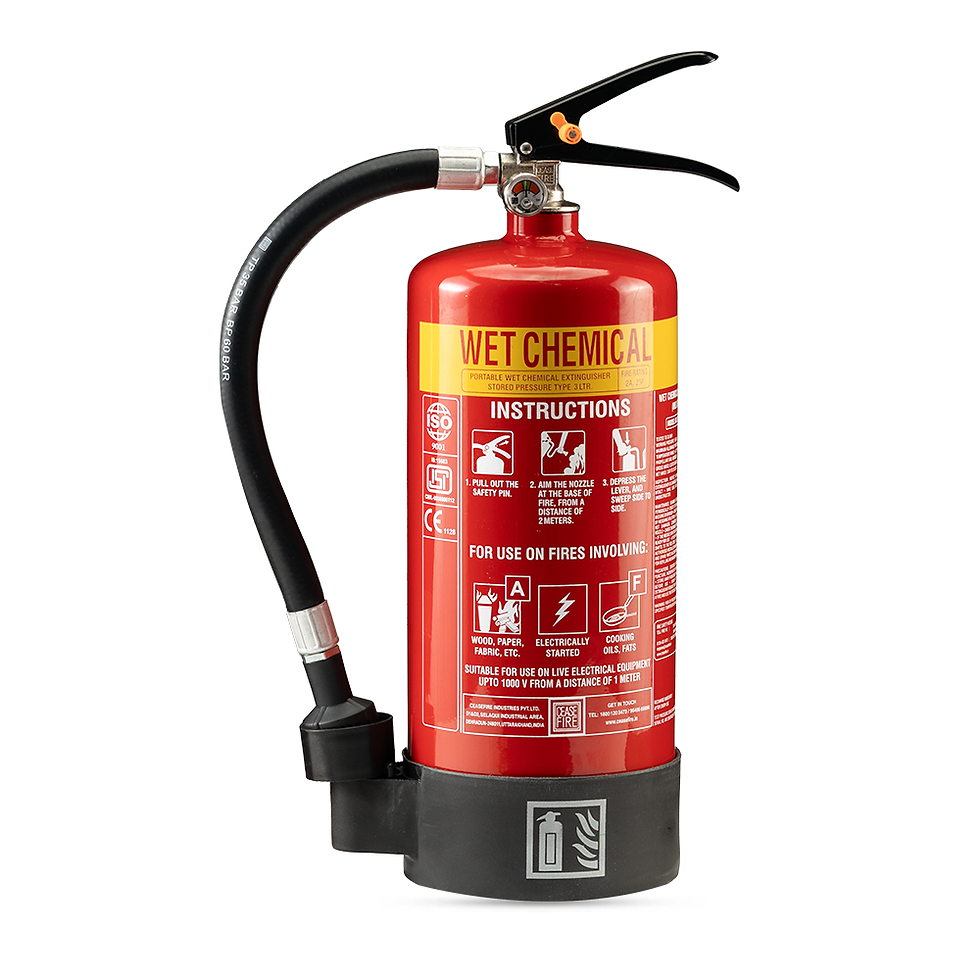

Wet Chemical Portable Extinguishers (Spray Model)
Ceasefire’s Wet Chemical Spray model extinguishers use an environmentally friendly foaming agent that blankets the flames, cuts off the supply of oxygen, cools the oil to below the self-ignition point and reduces the risk of re-ignition. It can be used on Class A, F, and electrically started fires.
FIRE RATINGS:Size Ratings 3 Ltr (Mild Steel) 2A, 25F 6 Ltr (Mild Steel) 3A, 75F 9 Ltr (Mild Steel) 4A, 75F - Fights class A, F and Electrically started fires.
- Biodegradable extinguishing agent.
- Reduces risk of re-ignition.
- Suitable for use on live electrical equipment up to 1000 V from a distance of 1 metre.
What’s New
01. Enhanced Valve System
- PRV + NRV for safer, simpler servicing.
The enhanced valve system provides added pressure safety and enables efficient maintenance without fully depressurising the extinguisher.
02. Screen-Printed Cylinder Label
- Built to last.
Product information is screen-printed directly onto the cylinder for excellent resistance to weather conditions, tampering, scratching, rubbing, chemicals and fading- keeping critical information long lasting.
03. Glow-in-the-Dark Signage
- Find it when visibility is low.
A phosphorescent locator sign at the base helps identify the extinguisher in darkness, low visibility and smoke, enabling faster access during emergencies. Conforms to DIN standards and exceeds DIN 67510 Part 4 requirements.
04. Eco-Friendly Packaging
- Less packaging waste. More responsibility.
Recyclable paper, corrugated board and natural rubber replace conventional packaging materials, helping reduce carbon footprints and making recycling easier.
05. Easy-Lug Mount Bracket
- Quick to mount. Easy to access.
The secure “J” hanger makes installation and removal quick and convenient while keeping the extinguisher firmly in place and readily accessible.
GLOSSARY FIRE EXT WET CHEMICAL 3L MS SP RED (SPRAY) FIRE EXT WET CHEMICAL 6L MS SP RED (SPRAY) FIRE EXT WET CHEMICAL 9L MS SP RED (SPRAY) PRODUCT CODES CF-001243S CF-001135S CF-001136S AGENT CLASS F FOAM CLASS F FOAM CLASS F FOAM STORED PRESSURE/CARTRIDGE STORED PRESSURE STORED PRESSURE STORED PRESSURE CERTIFICATION OR VERIFING BODY EUROCERT, BIS EUROCERT, BIS EUROCERT, BIS CERTIFICATION TYPE PED, IS 15683 PED, IS 15683 PED, IS 15683 BIS MARKING YES YES YES CE MARKING/UK CA CE YES YES YES BULK RANGE DISCHARGE (BRD AS PER IS-15683) > 2 METERS >2 METERS > 2 METERS GROSS WEIGHT (APPROX) 6.30 TO 6.80 KG 11.40 TO 12.00 KG 16.50KG TO 16.90 KG NET CONTENT 3.00 TO 3.15 LTR 6.00 TO 6.30 LTR 9.00 TO 9.45 LTR DISCHARGE MECHANISM SQUEEZE GRIP SQUEEZE GRIP SQUEEZE GRIP APPLICABLE ON FIRES A, F & ELECTRICAL STARTED FIRE A, F & ELECTRICAL STARTED FIRE. A, F & ELECTRICAL STARTED FIRE. IS 15683 RATINGS 2A, 25F 3A, 75F 4A, 75F CAN CONSTRUCTION DRAWN ROLLED & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED VALVE / CAP CONSTRUCTION FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING INTERNAL COATING EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EXTERNAL COATING EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER HELIUM LEAK DETECTION TESTING YES YES YES WARRANTY IN YEARS 6 6 6 WORKING PRESSURE 15 BAR 15 BAR 15 BAR HYDROSTATIC TEST PRESSURE 35 BAR 35 BAR 35 BAR DIA. OF SHELL (OD) 140 MM 160 MM 175 MM HEIGHT OF FIRE EXT. (APPROX) 435 MM 520 MM 615 MM BODY THICKNESS (APPROX) 1.2 MM 1.4 MM 1.4 MM CYLINDER MATERIAL SPEC. STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) OPERATING TEMPERATURE 5 °C TO 60°C 5 °C TO 60°C 5 °C TO 60°C
